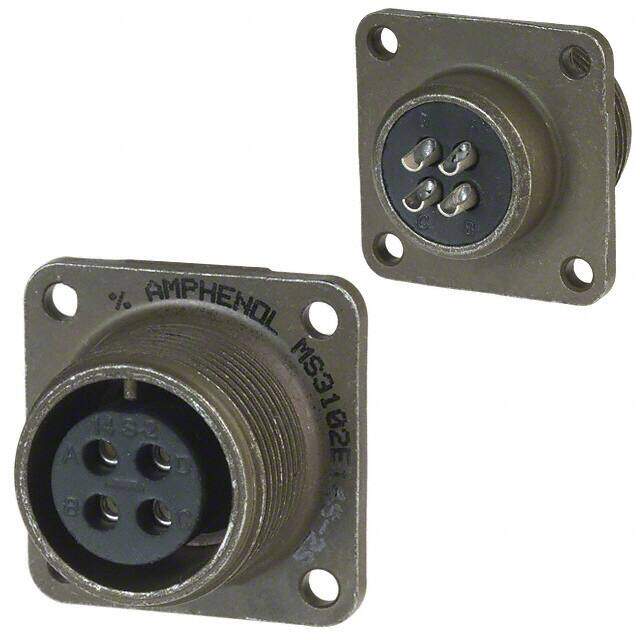

MS3102E14S-2S image
Favorite
MS3102E14S-2S image
Favorite
RoHS
/
Package Metal
Category Connectors, Interconnects / Circular Connectors
Description Olive Drab Chromate over Cadmium Straight MIL-5015Type Non-RoHS Compliant Circular Connector 20AWG -55C~125C 13A 800mV
PDF
/
Buying Options
Total Price: USD $9.94
Unit Price: USD $9.9352
≥1 USD $9.9352
≥10 USD $8.94168
≥100 USD $7.991192
≥500 USD $5.917806
Inventory: 55
Minimum: 1
-
+

Technical Details

Compliance

Ratings Environment Resistant
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Width 30.17mm
Length 27.78mm
Height 30.17mm

Technical

Cable Opening 0.750 (19.05mm)
Body Plating Cadmium
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 20 AWG
Plating Cadmium, Chromate
Contact Style Socket
Backshell Type SOLID
Empty Shell NO
Contact Gender Female
Voltage - Rated AC 800mV
Shell Size - Insert 14S-2
Shell Finish Olive Drab Chromate over Cadmium
Military Standard MIL-DTL-5015
Current Rating 13A
Depth 30.17mm
Ingress Protection Environment Resistant
Shielding Unshielded
Orientation N (Normal)
Total Number of Contacts 4
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance YES
Contact Finish - Mating Silver
Voltage - Rated DC 250V
Fastening Type Threaded
Additional Feature STANDARD: MIL-C-5015, COMPATIBLE CONTACTS: 10-597107-161; 10-597107-171
Gender Receptacle
Applications Marine, Military
Color Olive Drab
Number of Positions 4
Connector Type Receptacle, Female Sockets
ECCN Code EAR99
Termination Solder Cup
Part Status Active
Series MIL-5015 Type
Published 2001
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Shape Straight
Body Material Aluminium
Insert Material Neoprene
Material Ferrite
Shell Material Aluminum Alloy
Insulation Material Rubber
Mounting Feature Flange
Package / Case Metal
Mounting Type Panel Mount
Mount Box, Flanges, Panel
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 16 Weeks
