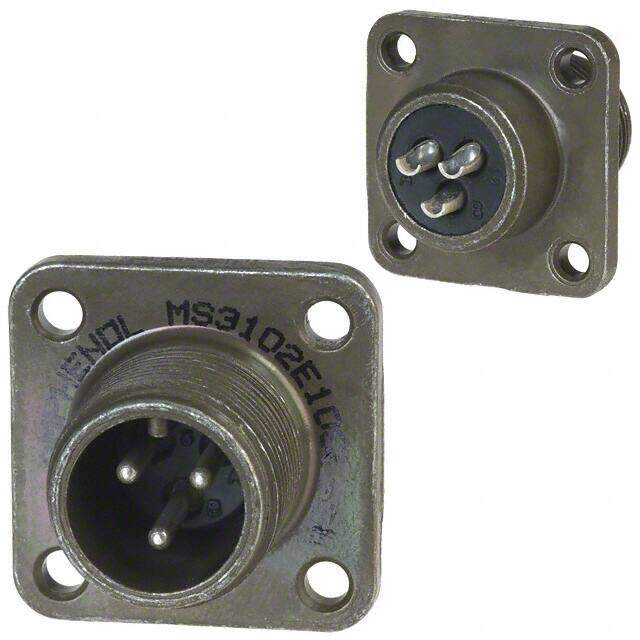

MS3102E10SL-3P
RoHS
/
Package Metal
Category Connectors, Interconnects / Circular Connectors
Description
Olive Drab Chromate over Cadmium Straight MIL-5015Type Non-RoHS Compliant Circular Connector 20AWG -55C~125C 13A 714mV
PDF
/
Buying Options
Total Price: USD $8.05
Unit Price: USD $8.052
≥1 USD $8.052
≥10 USD $7.24856
≥100 USD $6.478472
≥500 USD $4.797566
Inventory: 40
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Material Copper Alloy
Mount Box, Flanges, Panel
Mounting Type Panel Mount
Package / Case Metal
Mounting Feature Flange
Insulation Material Rubber
Shell Material Aluminum Alloy
Material Ferrite
Insert Material Neoprene
Body Material Aluminium
Shape Straight
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2002
Series MIL-5015 Type
Part Status Active
Termination Solder Cup
ECCN Code EAR99
Connector Type Receptacle, Male Pins
Number of Positions 3
Color Olive Drab
Applications Marine, Military
Gender Receptacle
Additional Feature STANDARD: MIL-C-5015, COMPATIBLE CONTACTS: 10-40569; 10-40599
Fastening Type Threaded
Voltage - Rated DC 700V
Contact Finish - Mating Silver
MIL Conformance YES
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 3
Orientation N (Normal)
Shielding Unshielded
Ingress Protection Environment Resistant
Depth 25.4mm
Current Rating 13A
Military Standard MIL-DTL-5015
Shell Finish Olive Drab Chromate over Cadmium
Shell Size - Insert 10SL-3
Voltage - Rated AC 714mV
Contact Gender Male
Empty Shell NO
Backshell Type SOLID
Contact Style Pin
Plating Cadmium, Chromate
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 16 AWG
Body Plating Cadmium
Cable Opening 0.625 (15.88mm)
Dimensions
Height 25.4mm
Length 27.78mm
Width 25.4mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
Ratings Environment Resistant
