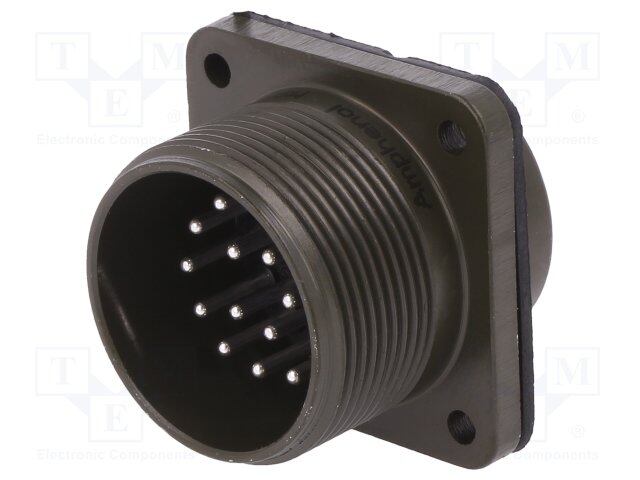

MS3102A20-29P
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
Olive Drab Chromate over Cadmium MIL-5015Type Non-RoHS Compliant 2005 Circular Connector 20AWG -55C~125C 13A 700V
PDF
/
Buying Options
Total Price: USD $30.45
Unit Price: USD $30.448
≥1 USD $30.448
≥10 USD $26.66576
≥100 USD $25.514016
≥500 USD $24.690864
≥1000 USD $23.8678
≥3000 USD $22.550986
Inventory: 101
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Silver, Gold
Mount Box, Flanges, Panel
Mounting Type Panel Mount
Mounting Feature Flange
Shell Material Aluminum Alloy
Insert Material Neoprene
Body Material Aluminium
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2005
Series MIL-5015 Type
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
ECCN Code EAR99
Connector Type Receptacle, Male Pins
Number of Positions 17
Color Olive Drab
Applications Marine, Military
Gender Receptacle
Voltage - Rated 700V
Additional Feature STANDARD:MIL-C-5015, POLARIZATION AVAILABLE
HTS Code 8536.69.40.20
Fastening Type Threaded
Contact Finish - Mating Silver
MIL Conformance YES
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 17
Orientation N (Normal)
Shielding Unshielded
Depth 38.1mm
Current Rating 13A
Military Standard MIL-DTL-5015
Shell Finish Olive Drab Chromate over Cadmium
Shell Size - Insert 20-29
Voltage - Rated AC 714mV
Contact Gender Male
Empty Shell NO
Backshell Type SOLID
Environmental Characteristics ENVIRONMENT RESISTANT
Plating Cadmium, Chromate, Zinc
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 16 AWG
Body Plating Cadmium
Cable Opening 1.125 (28.58mm)
Dimensions
Length 38.91mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
