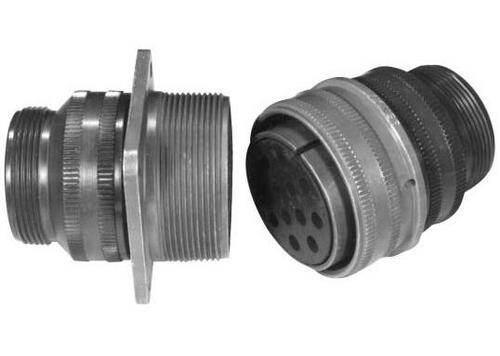

MS3101A20-29P
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
Circular MIL Spec Connector 17P #16 PIN CONTACTS
PDF
/
Buying Options
Total Price: USD $36.34
Unit Price: USD $36.3352
≥1 USD $36.3352
≥10 USD $31.8208
≥100 USD $30.445888
≥500 USD $29.463808
≥1000 USD $28.481552
≥3000 USD $26.910189
Inventory: 115
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold, Silver
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Aluminum Alloy
Insert Material Neoprene
Body Material Aluminium
Backshell Material, Plating Aluminum Alloy, Olive Drab Chromate over Cadmium
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2000
Series MIL-5015 Type
Feature Backshell
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Male Pins
Number of Positions 17
Color Olive Drab
Applications Marine, Military
Gender Receptacle
Voltage - Rated 700V
Additional Feature STANDARD:MIL-C-5015, POLARIZATION AVAILABLE
Fastening Type Threaded
Contact Finish - Mating Silver
MIL Conformance YES
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 17
Orientation N (Normal)
Shielding Unshielded
Current Rating 13A
Military Standard MIL-DTL-5015
Shell Finish Olive Drab Chromate over Cadmium
Shell Size - Insert 20-29
Contact Gender Male
Empty Shell NO
Backshell Type SOLID
Contact Style Pin
Environmental Characteristics ENVIRONMENT RESISTANT
Plating Cadmium, Chromate
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 16 AWG
Body Plating Cadmium
Dimensions
Length 46.83mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
