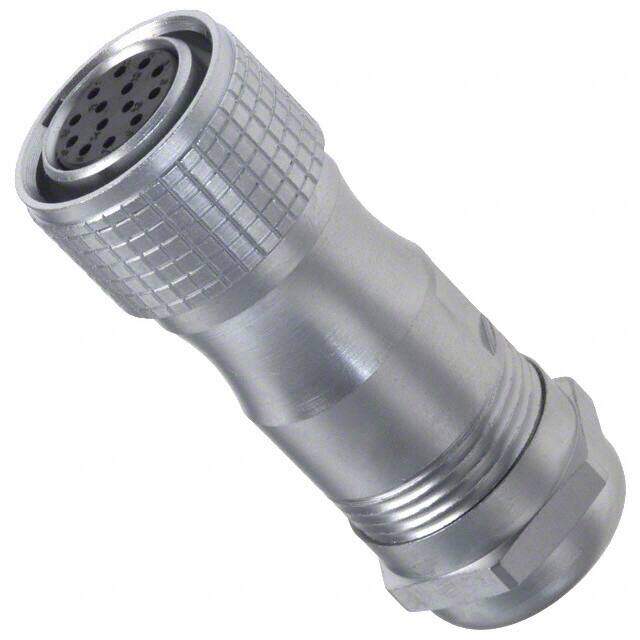

APSFSD6E2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN PLUG 18MM 5POS IP67 W/SCKT
PDF
/
Buying Options
Total Price: USD $83.21
Unit Price: USD $83.210562
≥1 USD $83.210562
≥10 USD $78.500531
≥100 USD $74.057107
≥500 USD $69.865191
≥1000 USD $65.910559
Inventory: 6402
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Coupling Type SNAP
Backshell Type SOLID
Empty Shell NO
Contact Gender Female
Mating Information MULTIPLE MATING PARTS AVAILABLE
Shell Size - Insert F
Shell Finish Nickel
Current Rating 5A
Reach Compliance Code unknown
Ingress Protection IP67 - Dust Tight, Waterproof
Total Number of Contacts 5
Current Rating (Amps) 5A 10A
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance YES
DIN Conformance NO
MIL Conformance NO
Fastening Type Push-Pull
Additional Feature STANDARD: IEC 61984, UL 94V-0
Gender Male
Applications Communication Systems, Instrumentation, Medical, Testing Equipment
Color Silver
Number of Positions 5
Connector Type Plug, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Backshell
Series Amphe - PPM? Sealed
Published 2011
Packaging Bulk
Operating Temperature -40°C~100°C
Physical
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Supply Chain
Factory Lead Time 12 Weeks
