Package /
Category Connectors, Interconnects / Circular Connectors

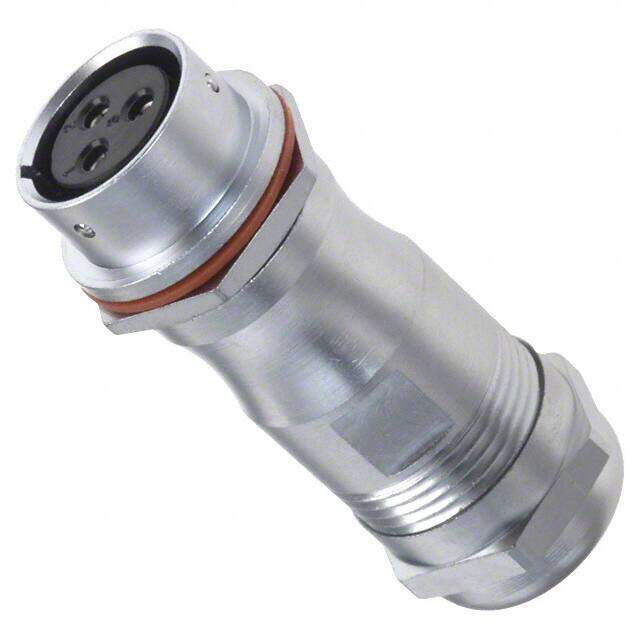

Description CONN RCPT 18MM 3POS IP67 W/SCKT
PDF
/
Inventory: 8523
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Mount Bulkhead, Panel, Rear Side Nut
Mounting Type Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Shell Material Metal

Technical

Operating Temperature -40°C~100°C
Packaging Bulk
Published 2011
Series Amphe - PPM? Sealed
Feature Backshell
Part Status Active
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Positions 3
Color Silver
Applications Communication Systems, Instrumentation, Medical, Testing Equipment
Gender Receptacle
Additional Feature STANDARD: IEC 61984, UL 94V-0
Fastening Type Push-Pull
MIL Conformance NO
DIN Conformance NO
IEC Conformance YES
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 5A
Total Number of Contacts 3
Ingress Protection IP67 - Dust Tight, Waterproof
Reach Compliance Code unknown
Current Rating 25A
Shell Finish Nickel
Shell Size - Insert F
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender Female
Empty Shell NO
Backshell Type SOLID
Coupling Type SNAP

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
