APSFPC6E2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

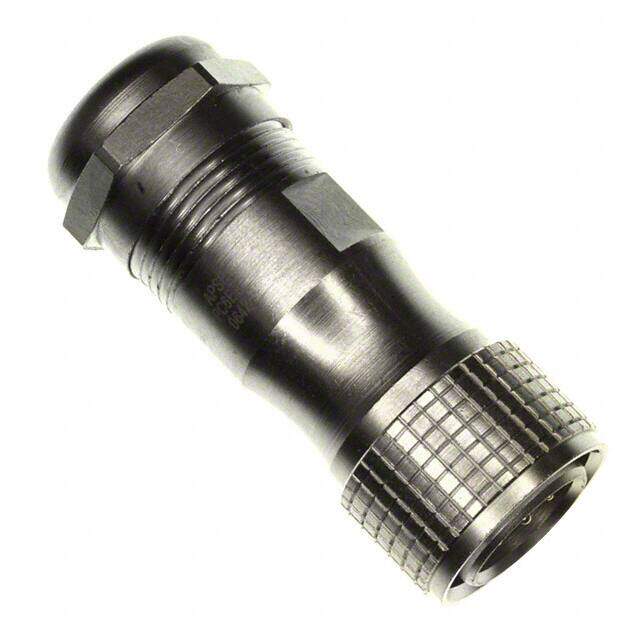

CONN PLUG 18MM 8POS IP67 W/PIN
PDF
/
Inventory: 3645
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Coupling Type SNAP
Backshell Type SOLID
Empty Shell NO
Contact Gender Male
Mating Information MULTIPLE MATING PARTS AVAILABLE
Number of Contacts 3
Shell Size - Insert F
Shell Finish Nickel
Current Rating 10A
Reach Compliance Code unknown
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating (Amps) 5A 10A
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance YES
DIN Conformance NO
MIL Conformance NO
Fastening Type Push-Pull
Applications Communication Systems, Instrumentation, Medical, Testing Equipment
Color Silver
Number of Positions 8
Connector Type Plug, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Feature Backshell
Series Amphe - PPM? Sealed
Published 2006
Packaging Bulk
Operating Temperature -40°C~100°C
Physical
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
