APSFPB2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

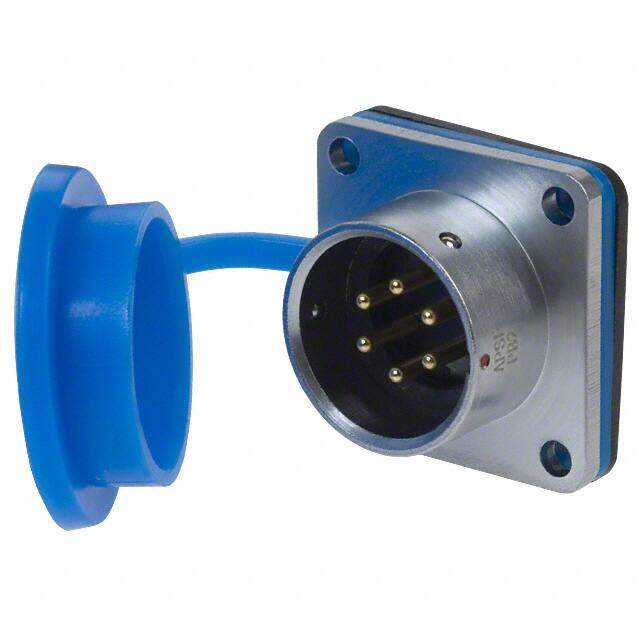

CONN RCPT 18MM 5POS IP67 W/PIN
PDF
/
Buying Options
Total Price: USD $35.37
Unit Price: USD $35.3672
≥1 USD $35.3672
≥10 USD $29.90152
≥100 USD $28.302912
Inventory: 53
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Coupling Type SNAP
Backshell Type SOLID
Empty Shell NO
Contact Gender Male
Mating Information MULTIPLE MATING PARTS AVAILABLE
Shell Size - Insert F
Shell Finish Nickel
Current Rating 10A
Reach Compliance Code unknown
Ingress Protection IP67 - Dust Tight, Waterproof
Total Number of Contacts 5
Current Rating (Amps) 5A
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance YES
DIN Conformance NO
MIL Conformance NO
Fastening Type Push-Pull
Additional Feature STANDARD: IEC 61984, UL 94V-0
Gender Receptacle
Applications Communication Systems, Instrumentation, Medical, Testing Equipment
Color Silver
Number of Positions 5
Connector Type Receptacle, Male Pins
Termination Solder Cup
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Dust Cap
Series Amphe - PPM? Sealed
Published 2011
Packaging Bulk
Operating Temperature -40°C~100°C
Physical
Shell Material Metal
Mounting Feature Flange
Mounting Type Panel Mount
Mount Flanges, Panel
Supply Chain
Factory Lead Time 12 Weeks
