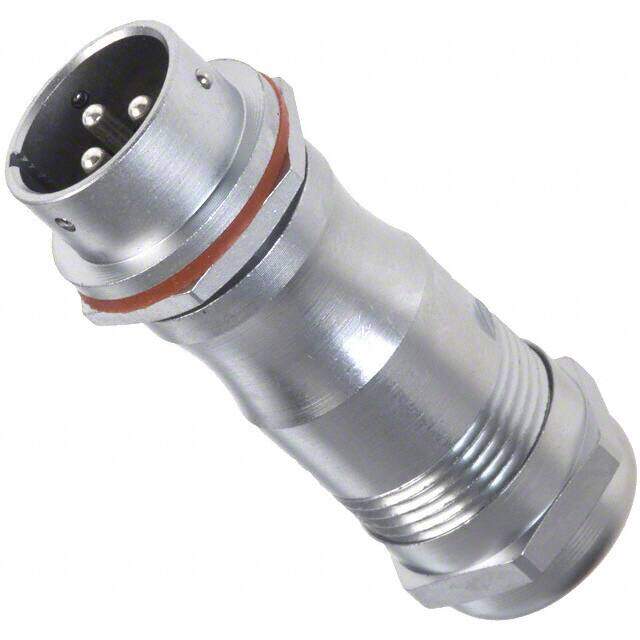

APSFPA7E2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT 18MM 3POS IP67 W/PIN
PDF
/
Inventory: 4476
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Bulkhead, Panel, Rear Side Nut
Mounting Type Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Shell Material Metal
Technical
Operating Temperature -40°C~100°C
Packaging Bulk
Published 2011
Series Amphe - PPM? Sealed
Feature Backshell
Part Status Active
Termination Solder Cup
Connector Type Receptacle, Male Pins
Number of Positions 3
Color Silver
Applications Communication Systems, Instrumentation, Medical, Testing Equipment
Gender Receptacle
Additional Feature STANDARD: IEC 61984, UL 94V-0
Fastening Type Push-Pull
MIL Conformance NO
DIN Conformance NO
IEC Conformance YES
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 10A
Total Number of Contacts 3
Ingress Protection IP67 - Dust Tight, Waterproof
Reach Compliance Code unknown
Current Rating 25A
Shell Finish Nickel
Shell Size - Insert F
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender Male
Empty Shell NO
Backshell Type SOLID
Coupling Type SNAP
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
