APSDSA7E2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

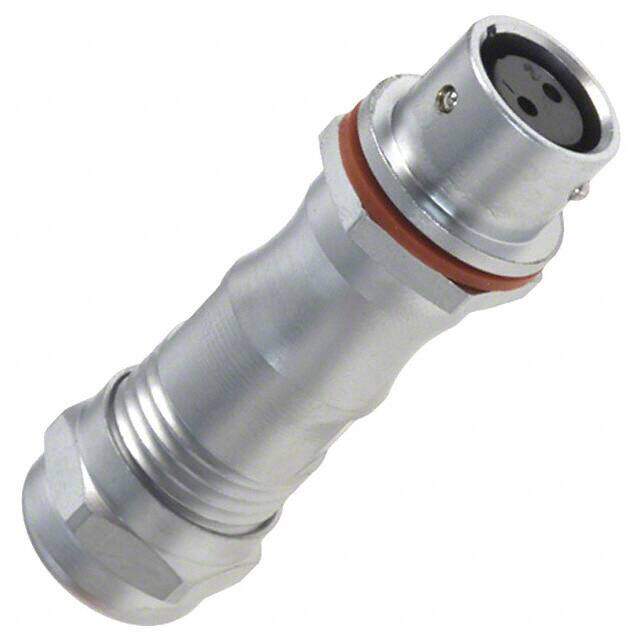

CONN RCPT 12MM 2POS IP67 W/SCKT
PDF
/
Inventory: 3454
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Bulkhead, Panel, Rear Side Nut
Mounting Type Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Technical
Operating Temperature -40°C~100°C
Packaging Bulk
Published 2006
Series Amphe - PPM? Sealed
Feature Backshell
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Positions 2
Color Silver
Applications Communication Systems, Instrumentation, Medical, Testing Equipment
Gender Receptacle
Fastening Type Push-Pull
MIL Conformance NO
DIN Conformance NO
IEC Conformance YES
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 25A
Total Number of Contacts 2
Ingress Protection IP67 - Dust Tight, Waterproof
Reach Compliance Code unknown
Current Rating 13A
Shell Finish Nickel
Shell Size - Insert D
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Coupling Type SNAP
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
