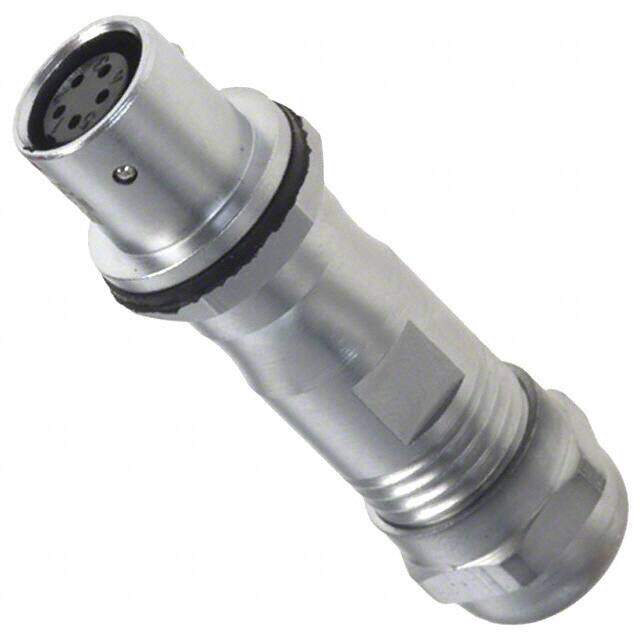

APSCSD7E2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT 10MM 5POS IP67 W/SCKT
PDF
/
Buying Options
Total Price: USD $40.29
Unit Price: USD $40.2864
≥1 USD $40.2864
≥10 USD $34.45376
≥100 USD $32.265728
Inventory: 88
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Bulkhead, Panel, Rear Side Nut
Mounting Type Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Technical
Operating Temperature -40°C~100°C
Packaging Bulk
Published 2006
Series Amphe - PPM? Sealed
Feature Backshell
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder Cup
ECCN Code EAR99
Connector Type Receptacle, Female Sockets
Number of Positions 5
Color Silver
Applications Communication Systems, Instrumentation, Medical, Testing Equipment
Gender Receptacle
Fastening Type Push-Pull
MIL Conformance NO
DIN Conformance NO
IEC Conformance YES
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 13A
Total Number of Contacts 5
Ingress Protection IP67 - Dust Tight, Waterproof
Reach Compliance Code unknown
Current Rating 3A
Shell Finish Nickel
Shell Size - Insert C
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Backshell Type SOLID
Coupling Type SNAP
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
