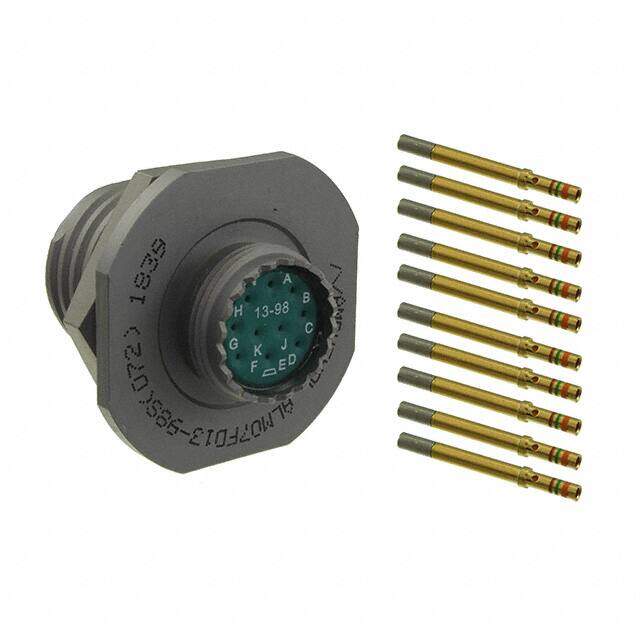

ALM07FD13-98S(072)
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE 10POS GOLD CRIMP
PDF
/
Buying Options
Total Price: USD $31.76
Unit Price: USD $31.7592
≥1 USD $31.7592
≥10 USD $27.06
≥100 USD $25.493248
≥500 USD $23.784288
≥1000 USD $21.0782
≥3000 USD $19.938864
Inventory: 49
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Technical
Shell Size - Insert 13-98
Shell Finish Gray Zinc Nickel
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Shielded
Orientation N (Normal)
Current Rating (Amps) 7.5A
Contact Finish - Mating Gold
Fastening Type Threaded
Applications Aviation
Color Gray
Number of Positions 10
Connector Type Receptacle, Female Sockets
Termination Crimp
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series Amphe-Lite M3
Packaging Bulk
Operating Temperature -65°C~125°C
Physical
Insert Material Silicon Rubber
Shell Material Composite
Mounting Feature Bulkhead - Front Side Nut
Mounting Type Panel Mount
Supply Chain
Factory Lead Time 12 Weeks
