ALM00FD15-35S(072)
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description

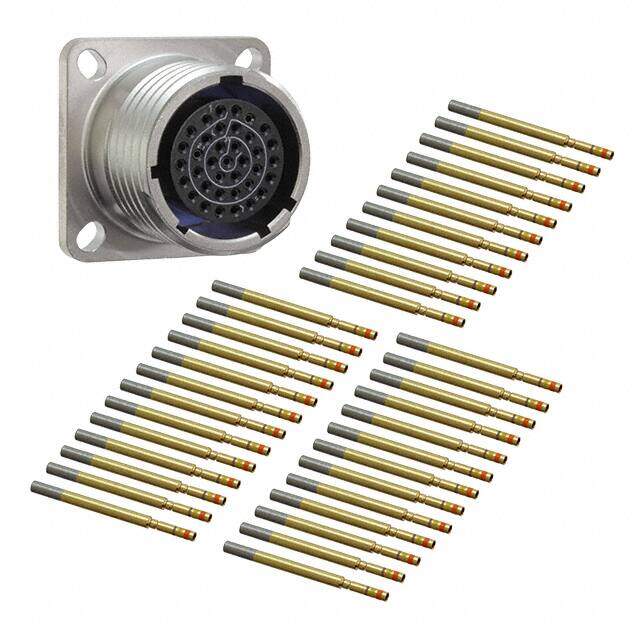

CONN RCPT FMALE 37POS GOLD CRIMP
PDF
/
Buying Options
Total Price: USD $39.92
Unit Price: USD $39.9168
≥1 USD $39.9168
≥10 USD $34.1352
≥100 USD $31.967584
≥500 USD $29.800496
≥1000 USD $26.368848
≥3000 USD $24.562771
Inventory: 60
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Panel Mount
Mounting Feature Flange
Shell Material Composite
Insert Material Silicon Rubber
Technical
Operating Temperature -65°C~125°C
Packaging Bulk
Series Amphe-Lite M3
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Shell Size - Insert 15-35
Shell Finish Gray Zinc Nickel
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Shielded
Orientation N (Normal)
Current Rating (Amps) 5A
Contact Finish - Mating Gold
Fastening Type Threaded
Applications Aviation
Color Gray
Number of Positions 37
Connector Type Receptacle, Female Sockets
Termination Crimp
Compliance
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
