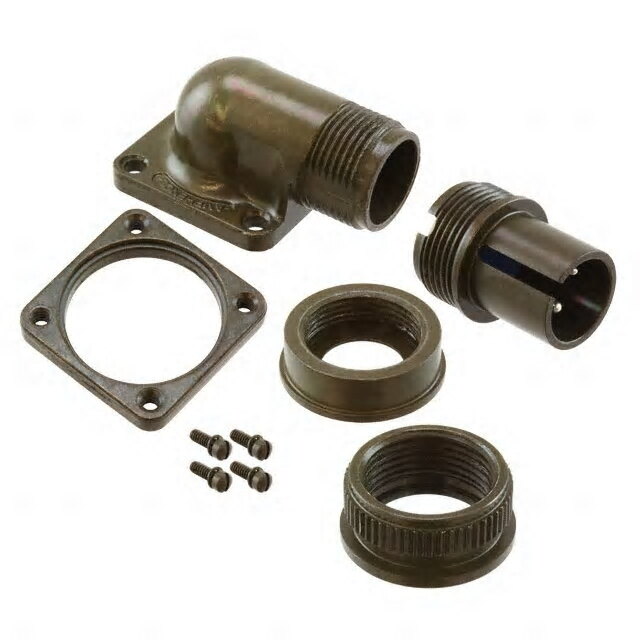

97-3108A-12S-3P
RoHS
/
Package Metal
Category Connectors, Interconnects / Circular Connectors
Description
CONN PLUG MALE 2POS SOLDER CUP
PDF
/
Buying Options
Total Price: USD $48.46
Unit Price: USD $48.463997
≥1 USD $48.463997
≥10 USD $45.720754
≥100 USD $43.132781
≥500 USD $40.691299
≥1000 USD $38.388026
Inventory: 8147
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Copper Alloy
Mount Cable, Chassis, Panel
Mounting Type Free Hanging (In-Line), Right Angle
Package / Case Metal
Shell Material Aluminum Alloy
Insert Material Diallyl Phthalate (DAP)
Body Material Aluminium
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2004
Series 97
Feature Coupling Nut
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Male Pins
Number of Positions 2
Color Olive Drab
Applications Automotive, Industrial
Additional Feature STANDARD: MIL-C-5015
Fastening Type Threaded
Contact Finish - Mating Silver
MIL Conformance YES
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 2
Orientation N (Normal)
Shielding Unshielded
Current Rating 13A
Military Standard MIL-DTL-5015
Shell Finish Olive Drab Chromate over Cadmium
Shell Size - Insert 12S-3
Approval Agency CSA, UL
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender Male
Empty Shell NO
Backshell Type SOLID
Contact Style Pin
Environmental Characteristics ENVIRONMENT RESISTANT
Plating Cadmium, Chromate
Body Plating Cadmium
Wire/Cable Gauge 16 AWG
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
