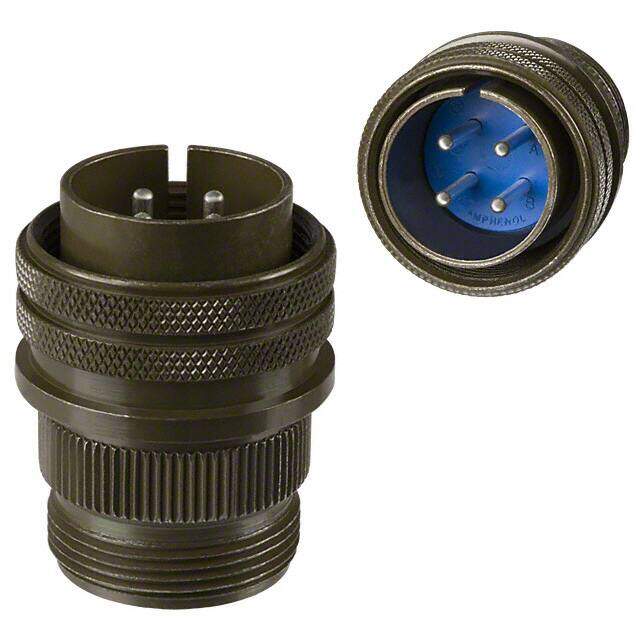

97-3106A-20-4P
RoHS
/
Package Metal
Category Connectors, Interconnects / Circular Connectors
Description
Circular MIL Spec Connector 4P Straight Pin Plug Sz 20 Solder
PDF
/
Buying Options
Total Price: USD $37.05
Unit Price: USD $37.048
≥1 USD $37.048
≥10 USD $32.44032
≥100 USD $29.035776
Inventory: 67
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Material Copper Alloy
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Package / Case Metal
Insulation Material Plastic
Shell Material Aluminum Alloy
Insert Material Diallyl Phthalate (DAP)
Body Material Aluminium
Backshell Material, Plating Aluminum Alloy, Olive Drab Chromate over Cadmium
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2006
Series 97
Feature Backshell, Coupling Nut
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Male Pins
Number of Positions 4
Color Olive Drab
Applications Automotive, Industrial
Voltage - Rated 1.25kV
Fastening Type Threaded
Voltage - Rated DC 1.25kV
Contact Finish - Mating Silver
MIL Conformance YES
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 4
Orientation N (Normal)
Shielding Unshielded
Current Rating 23A
Military Standard MIL-DTL-5015
Shell Finish Olive Drab Chromate over Cadmium
Shell Size - Insert 20-4
Approval Agency CSA, UL
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender Male
Empty Shell NO
Backshell Type SOLID
Contact Style Pin
Environmental Characteristics ENVIRONMENT RESISTANT
Plating Aluminium, Cadmium, Chromate
Number of Ports 1
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 14 AWG
Body Plating Cadmium
Wire/Cable Gauge 12 AWG
Max Voltage Rating (DC) 1.2509MV
Dimensions
Length 47.5mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
