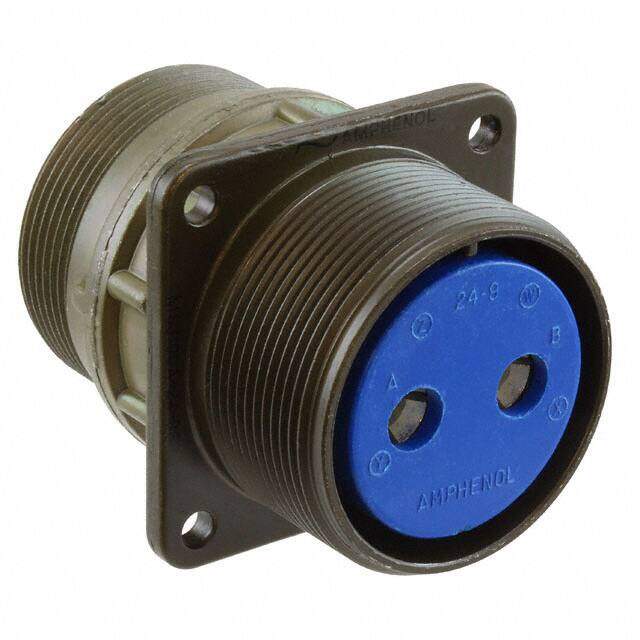

97-3100A-24-9S image
Favorite
97-3100A-24-9S image
Favorite
RoHS
/
Package Metal
Category Connectors, Interconnects / Circular Connectors
Description CONN RCPT FMALE 2POS SOLDER CUP
PDF
/
Buying Options
Total Price: USD $50.69
Unit Price: USD $50.688
≥1 USD $50.688
Inventory: 57
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 14 Weeks

Physical

Contact Material Copper Alloy
Mount Chassis, Flanges, Panel, Wall
Mounting Type Panel Mount
Package / Case Metal
Mounting Feature Flange
Shell Material Aluminum Alloy
Insert Material Diallyl Phthalate (DAP)
Body Material Aluminium
Backshell Material, Plating Aluminum Alloy, Olive Drab Chromate over Cadmium

Technical

Operating Temperature -55°C~125°C
Packaging Bulk
Published 2016
Series 97
Feature Backshell
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Positions 2
Color Olive Drab
Applications Automotive, Industrial
Gender Receptacle
Fastening Type Threaded
Voltage - Rated DC 700V
Contact Finish - Mating Silver
Orientation N (Normal)
Shielding Unshielded
Current Rating 80A
Military Standard MIL-DTL-5015
Shell Finish Olive Drab Chromate over Cadmium
Shell Size - Insert 24-9
Voltage - Rated AC 714mV
Approval Agency CSA, UL
Contact Gender Female
Contact Style Socket
Plating Cadmium, Chromate

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
