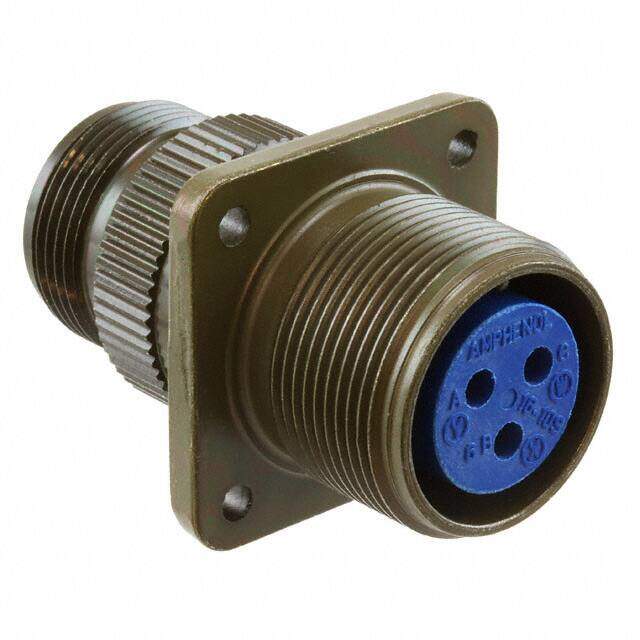

97-3100A-16-10S
RoHS
/
Package Metal
Category Connectors, Interconnects / Circular Connectors
Description
Circular MIL Spec Connector 3P Sz 16 Wall Mount Socket Recept Solder
PDF
/
Inventory: 6356
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Chassis, Flanges, Panel, Wall
Mounting Type Panel Mount
Package / Case Metal
Mounting Feature Flange
Shell Material Aluminum Alloy
Insert Material Diallyl Phthalate (DAP)
Body Material Aluminium
Backshell Material, Plating Aluminum Alloy, Olive Drab Chromate over Cadmium
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2004
Series 97
Feature Backshell
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Receptacle, Female Sockets
Number of Positions 3
Color Olive Drab
Applications Automotive, Industrial
Gender Receptacle
Voltage - Rated 700V
Fastening Type Threaded
Contact Finish - Mating Silver
Orientation N (Normal)
Shielding Unshielded
Current Rating 23A
Military Standard MIL-DTL-5015
Shell Finish Olive Drab Chromate over Cadmium
Shell Size - Insert 16-10
Voltage - Rated AC 714mV
Approval Agency CSA, UL
Contact Gender Female
Contact Style Socket
Plating Cadmium, Chromate
Body Plating Cadmium
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
