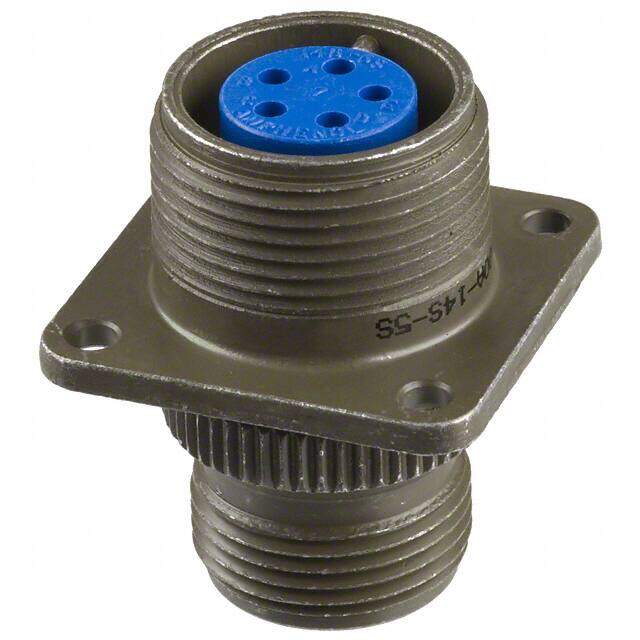

97-3100A-14S-5S
RoHS
/
Package Metal
Category Connectors, Interconnects / Circular Connectors
Description
Olive Drab Chromate over Cadmium 97 Non-RoHS Compliant 2004 Circular Connector 22AWG -55C~125C 13A 800mV
PDF
/
Buying Options
Total Price: USD $17
Unit Price: USD $17.0016
≥1 USD $17.0016
≥10 USD $16.18144
Inventory: 72
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Technical
Wire/Cable Gauge 16 AWG
Body Plating Cadmium
Wire Gauge (Min) 16 AWG
Wire Gauge (Max) 22 AWG
Plating Cadmium, Chromate
Environmental Characteristics ENVIRONMENT RESISTANT
Contact Style Socket
Backshell Type SOLID
Empty Shell NO
Contact Gender Female
Mating Information MULTIPLE MATING PARTS AVAILABLE
Approval Agency CSA, UL
Voltage - Rated AC 800mV
Shell Size - Insert 14S-5
Shell Finish Olive Drab Chromate over Cadmium
Military Standard MIL-DTL-5015
Current Rating 13A
Shielding Unshielded
Orientation N (Normal)
Total Number of Contacts 5
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance YES
Contact Finish - Mating Silver
Voltage - Rated DC 250V
Fastening Type Threaded
Gender Receptacle
Applications Automotive, Industrial
Color Olive Drab
Number of Positions 5
Connector Type Receptacle, Female Sockets
Termination Solder Cup
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Backshell
Series 97
Published 2004
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Backshell Material, Plating Aluminum Alloy, Olive Drab Chromate over Cadmium
Body Material Aluminium
Insert Material Diallyl Phthalate (DAP)
Shell Material Aluminum Alloy
Insulation Material Plastic
Mounting Feature Flange
Package / Case Metal
Mounting Type Panel Mount
Mount Chassis, Flanges, Panel, Wall
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 14 Weeks
