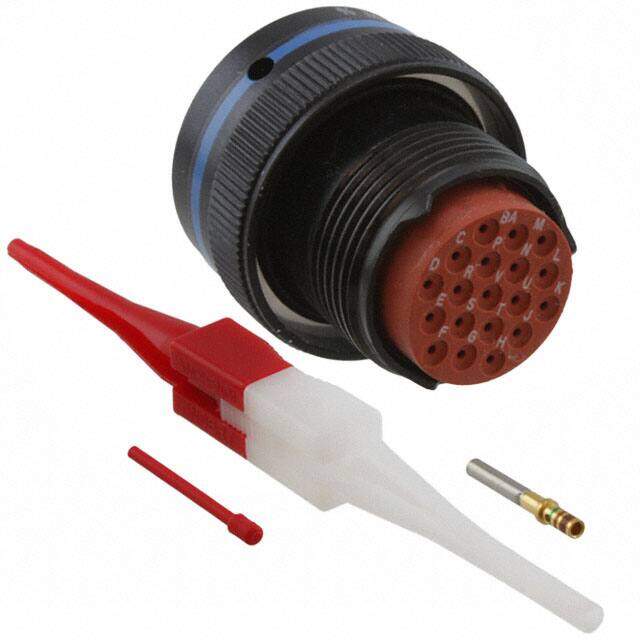

MS3476A14-19P
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
Circular MIL Spec Connector 19P Size 14 Plug
PDF
/
Inventory: 3412
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance YES
Contact Finish - Mating Gold
Fastening Type Bayonet Lock
Additional Feature STANDARD: MIL-C-26482, COMPATIBLE CONTACT: M39029/4-110
Applications Aviation, Industrial, Instrumentation, Marine, Military, Testing Equipment
Color Black
Number of Positions 19
Connector Type Plug, Male Pins
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Coupling Nut, Ground
Series Military, MIL-DTL-26482 Series II
Published 2006
Packaging Bulk
Operating Temperature -65°C~200°C
Plating Anodized
Backshell Type SOLID
Empty Shell NO
Contact Gender Male
Mating Information MULTIPLE MATING PARTS AVAILABLE
Shell Size - Insert 14-19
Shell Finish Black Anodized
Military Standard MIL-DTL-26482
Current Rating 7.5A
Ingress Protection Environment Resistant
Shielding Shielded
Orientation N (Normal)
Total Number of Contacts 19
Physical
Body Material Aluminium
Shell Material Aluminum
Number of Pins 20
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 16 Weeks
Compliance
Ratings Environment Resistant, IP67
RoHS Status Non-RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Contact Finish Thickness - Mating 50.0μin 1.27μm
