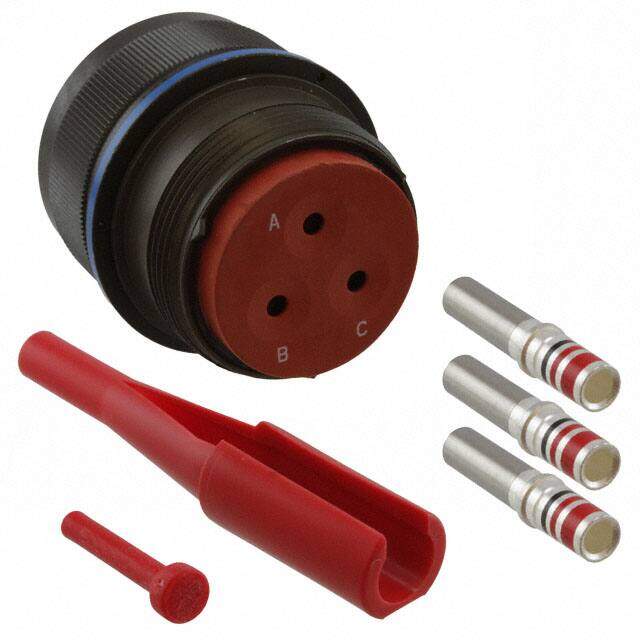

MS3456W22-2P
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
Circular MIL Spec Connector 3P STRAIGHT PLUG PIN THREAD CRP SZ 22
PDF
/
Buying Options
Total Price: USD $59.74
Unit Price: USD $59.7432
≥1 USD $59.7432
Inventory: 64
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold, Silver
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Number of Pins 8
Shell Material Aluminum
Body Material Aluminium
Technical
Operating Temperature -55°C~175°C
Packaging Bulk
Published 2006
Series Military, MIL-DTL-5015
Feature Coupling Nut
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
ECCN Code EAR99
Connector Type Plug, Male Pins
Number of Positions 3 (Power)
Color Olive Drab
Applications Aviation, Automotive, Military
Voltage - Rated 2.8kV
Fastening Type Threaded
Contact Finish - Mating Gold
MIL Conformance YES
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation N (Normal)
Shielding Unshielded
Ingress Protection Fluid Resistant
Current Rating 46A
Military Standard MIL-DTL-5015
Shell Finish Olive Drab Cadmium
Shell Size - Insert 22-2
Number of Contacts 3
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender Male
Empty Shell NO
Backshell Type SOLID
Environmental Characteristics ENVIRONMENT/FLUID/IMMERSION RESISTANT
Max Current Rating 46A
Wire Gauge (Max) 8 AWG
Wire Gauge (Min) 10 AWG
Body Plating Cadmium
Dimensions
Length 63.5mm
Contact Finish Thickness - Mating 50.0μin 1.27μm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status Non-RoHS Compliant
Ratings Fluid Resistant
