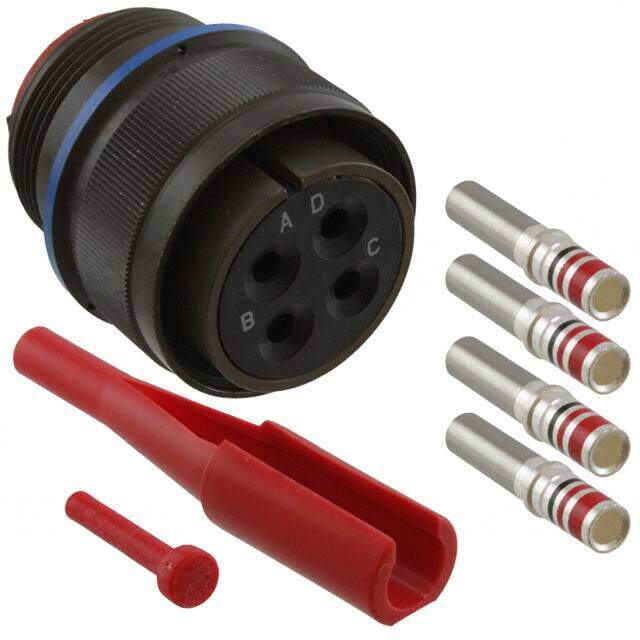

MS3456W22-22S
RoHS
/
Package Metal
Category Connectors, Interconnects / Circular Connectors
Description
Circular MIL Spec Connector PLUG W/THRD COUPLING 4P SIZE 8 SOCKET
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Material Copper Alloy
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Package / Case Metal
Shell Material Aluminum
Body Material Aluminium
Technical
Operating Temperature -55°C~175°C
Packaging Bulk
Published 2006
Series Military, MIL-DTL-5015
Feature Coupling Nut
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
ECCN Code EAR99
Connector Type Plug, Female Sockets
Number of Positions 4 (Power)
Color Olive Drab
Applications Aviation, Automotive, Military
Gender Male
Voltage - Rated 2kV
Fastening Type Threaded
Contact Finish - Mating Gold
MIL Conformance YES
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation N (Normal)
Shielding Unshielded
Ingress Protection Fluid Resistant
Current Rating 46A
Military Standard MIL-DTL-5015
Shell Finish Olive Drab Cadmium
Shell Size - Insert 22-22
Number of Contacts 4
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender Female
Empty Shell NO
Backshell Type SOLID
Contact Size 8
Environmental Characteristics ENVIRONMENT/FLUID/IMMERSION RESISTANT
Wire Gauge (Max) 8 AWG
Wire Gauge (Min) 10 AWG
Body Plating Cadmium
Dimensions
Contact Finish Thickness - Mating 50.0μin 1.27μm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status Non-RoHS Compliant
Ratings Fluid Resistant
Alternative Model
