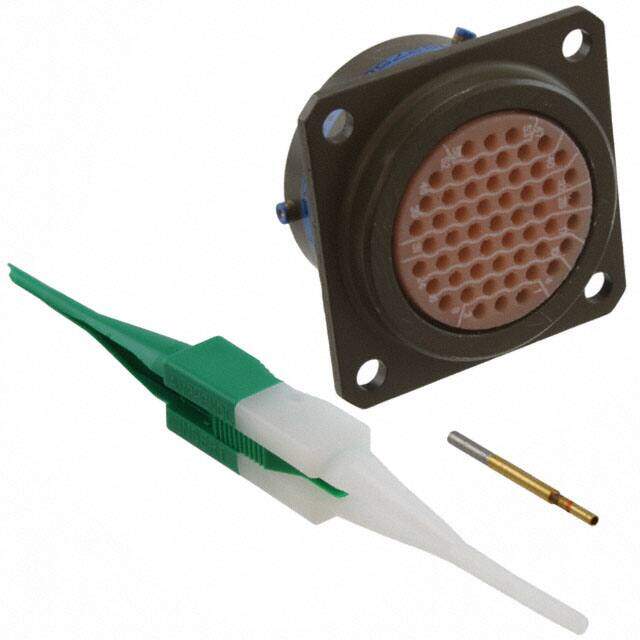

MS27508E16B35P
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
Circular MIL Spec Connector size 16 shell recpt
PDF
/
Buying Options
Total Price: USD $37.11
Unit Price: USD $37.1096
≥1 USD $37.1096
≥10 USD $36.4936
≥100 USD $35.3408
≥500 USD $34.2496
≥1000 USD $32.2696
≥3000 USD $30.5008
Inventory: 52
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Material Copper Alloy
Mount Box, Flanges, Panel
Mounting Type Panel Mount
Mounting Feature Flange
Shell Material Aluminum Alloy
Body Material Aluminium
Technical
Operating Temperature -65°C~175°C
Packaging Bulk
Published 2006
Series Military, MIL-DTL-38999 Series II, JT
JESD-609 Code e4
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Receptacle, Male Pins
Number of Positions 55
Color Olive Drab
Applications Aviation, Marine, Military
Gender Receptacle
Voltage - Rated 500V
Fastening Type Bayonet Lock
Contact Finish - Mating Gold
MIL Conformance YES
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 55
Orientation N (Normal)
Shielding Unshielded
Ingress Protection Environment Resistant
Depth 30.96mm
Current Rating 5A
Military Standard MIL-DTL-38999
Shell Finish Olive Drab Cadmium over Nickel
Shell Size - Insert 16-35
Contact Gender Male
Empty Shell NO
Backshell Type SOLID
Contact Style Pin
Plating Cadmium
Wire/Cable Gauge 22 AWG
Dimensions
Length 18.54mm
Contact Finish Thickness - Mating 50.0μin 1.27μm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
Ratings Environment Resistant
