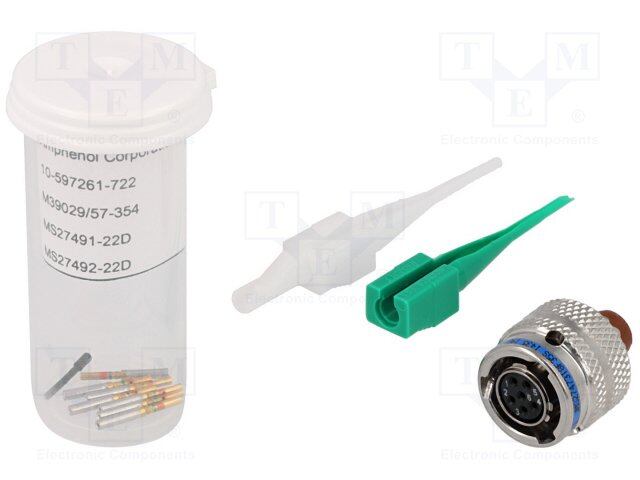

MS27473T8F35S
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
Electroless Nickel Military MIL-DTL-38999Series II JT Non-RoHS Compliant Environment Resistant Circular Connector 22AWG -65C~200C 5A 500V
PDF
/
Buying Options
Total Price: USD $124.14
Unit Price: USD $124.1416
≥1 USD $124.1416
≥10 USD $113.91688
≥100 USD $109.535712
≥500 USD $105.884592
Inventory: 94
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Material Copper Alloy
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Aluminum
Body Material Aluminium
Technical
Operating Temperature -65°C~200°C
Packaging Bulk
Published 2001
Series Military, MIL-DTL-38999 Series II, JT
JESD-609 Code e4
Feature Coupling Nut
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Plug, Female Sockets
Number of Positions 6
Color Silver
Applications Aviation, Military
Gender Male
Voltage - Rated 500V
Fastening Type Bayonet Lock
Contact Finish - Mating Gold
MIL Conformance YES
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 6
Orientation N (Normal)
Shielding Unshielded
Ingress Protection Environment Resistant
Current Rating 5A
Military Standard MIL-DTL-38999
Shell Finish Electroless Nickel
Shell Size - Insert 8-35
Contact Gender Female
Empty Shell NO
Backshell Type SOLID
Contact Style Socket
Plating Electroless Nickel, Passivated, Steel
Wire/Cable Gauge 22 AWG
Dimensions
Length 22.63mm
Contact Finish Thickness - Mating 50.0μin 1.27μm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
Ratings Environment Resistant
