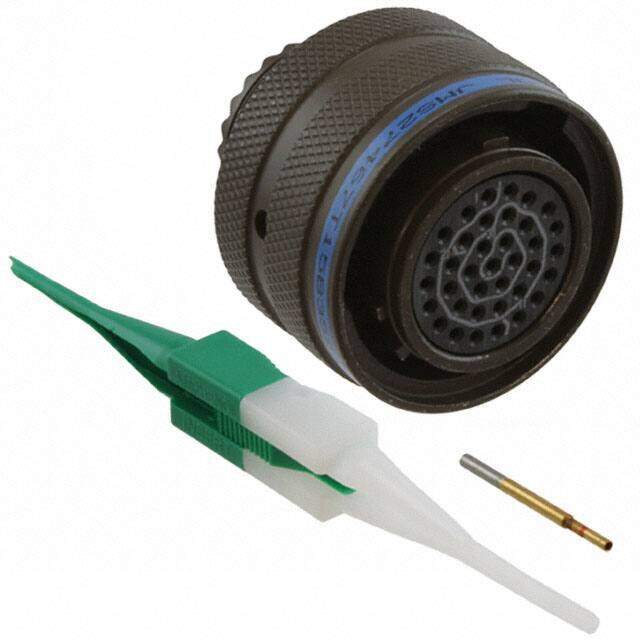

MS27467T15B35S
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
Conn Subminiature Cylindrical SKT 37 POS Crimp ST Cable Mount 37 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $48.7
Unit Price: USD $48.6992
≥1 USD $48.6992
≥10 USD $44.68816
≥100 USD $42.968992
≥500 USD $41.536704
≥1000 USD $39.245096
Inventory: 49
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Material Copper Alloy
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Aluminum Alloy
Body Material Aluminium
Technical
Operating Temperature -65°C~175°C
Packaging Bulk
Published 2006
Series Military, MIL-DTL-38999 Series I, LJT
JESD-609 Code e4
Feature Coupling Nut
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Plug, Female Sockets
Number of Positions 37
Color Olive Drab
Applications Aviation, Marine, Military
Gender Male
Fastening Type Bayonet Lock
Contact Finish - Mating Gold
MIL Conformance YES
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 37
Orientation N (Normal)
Shielding Shielded
Ingress Protection Environment Resistant
Current Rating 5A
Military Standard MIL-DTL-38999
Shell Finish Olive Drab Cadmium over Nickel
Shell Size - Insert 15-35
Contact Gender Female
Empty Shell NO
Backshell Type SOLID
Contact Style Socket
Contact Size 22D
Plating Cadmium
Dimensions
Length 30.96mm
Contact Finish Thickness - Mating 50.0μin 1.27μm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
Ratings Environment Resistant
