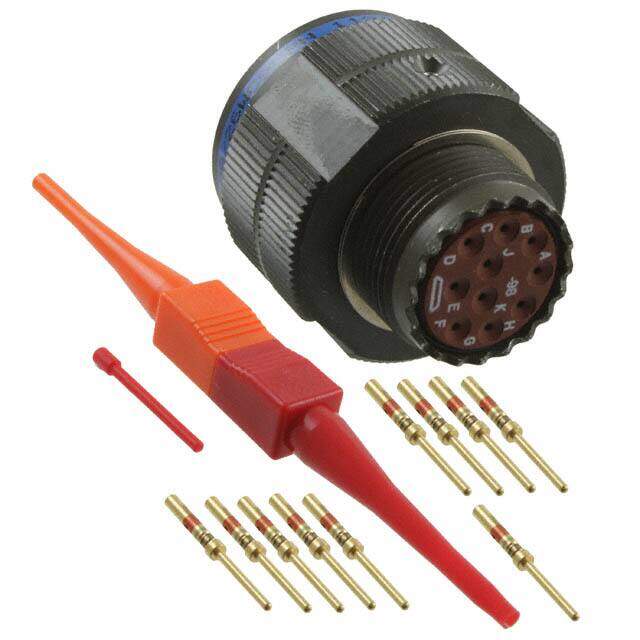

D38999/26WC98PN
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
Circular MIL Spec Connector 10P SIZE 13 STRAIGHT PLUG PIN
PDF
/
Buying Options
Total Price: USD $46.62
Unit Price: USD $46.6224
≥1 USD $46.6224
≥10 USD $45.11584
≥100 USD $43.71136
≥500 USD $43.03376
≥1000 USD $40.5328
≥3000 USD $39.95376
Inventory: 87
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Material Copper Alloy
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Shell Material Aluminum
Insert Material Thermoplastic
Body Material Aluminium
Technical
Operating Temperature -65°C~175°C
Packaging Bulk
Published 2006
Series Military, MIL-DTL-38999 Series III, Tri-Start? TV
JESD-609 Code e4
Feature Coupling Nut, Self Locking
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Plug, Male Pins
Number of Positions 10
Color Olive Drab
Applications Aviation, Marine, Military
Voltage - Rated 850V
Fastening Type Threaded
Contact Finish - Mating Gold
MIL Conformance YES
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Total Number of Contacts 10
Orientation N (Normal)
Shielding Shielded
Ingress Protection Environment Resistant
Current Rating 7.5A
Military Standard MIL-DTL-38999
Shell Finish Olive Drab Cadmium
Shell Size - Insert 13-98
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender Male
Empty Shell NO
Backshell Type SOLID
Contact Style Pin
Contact Size 20
Plating Cadmium, Chromate
Body Plating Cadmium
Shell Size, MIL C
Contact Quantities 10
Dimensions
Length 31.34mm
Contact Finish Thickness - Mating 50.0μin 1.27μm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
Ratings Environment Resistant
