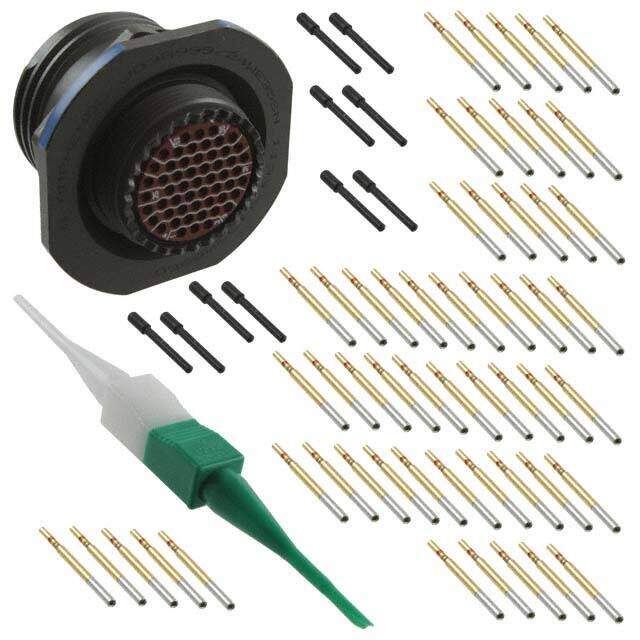

D38999/24WE35PN
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
Conn MIL-DTL-38999 Circular PIN 55 POS Crimp ST Jam Nut 55 Terminal 1 Port
PDF
/
Buying Options
Total Price: USD $45.46
Unit Price: USD $45.4608
≥1 USD $45.4608
≥10 USD $41.7208
≥100 USD $40.116032
≥500 USD $38.778784
≥1000 USD $36.63924
Inventory: 152
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Mount Bulkhead, Front Side Nut, Jam Nut, Panel
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Shell Material Aluminum
Insert Material Thermoplastic
Body Material Aluminium
Technical
Operating Temperature -65°C~175°C
Packaging Bulk
Published 2006
Series Military, MIL-DTL-38999 Series III, Tri-Start? TV
JESD-609 Code e4
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Receptacle, Male Pins
Number of Positions 55
Color Olive Drab
Applications Aviation, Marine, Military
Gender Receptacle
Fastening Type Threaded
Contact Finish - Mating Gold
MIL Conformance YES
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 55
Orientation N (Normal)
Shielding Shielded
Ingress Protection Environment Resistant
Depth 41.28mm
Current Rating 5A
Military Standard MIL-DTL-38999
Shell Finish Olive Drab Cadmium
Shell Size - Insert 17-35
Contact Gender Male
Empty Shell NO
Backshell Type SOLID
Contact Style Pin
Contact Size 22D
Plating Cadmium, Chromate
Body Plating Cadmium
Shell Size, MIL E
Contact Quantities 55
Dimensions
Length 31.9mm
Contact Finish Thickness - Mating 50.0μin 1.27μm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
Ratings Environment Resistant
