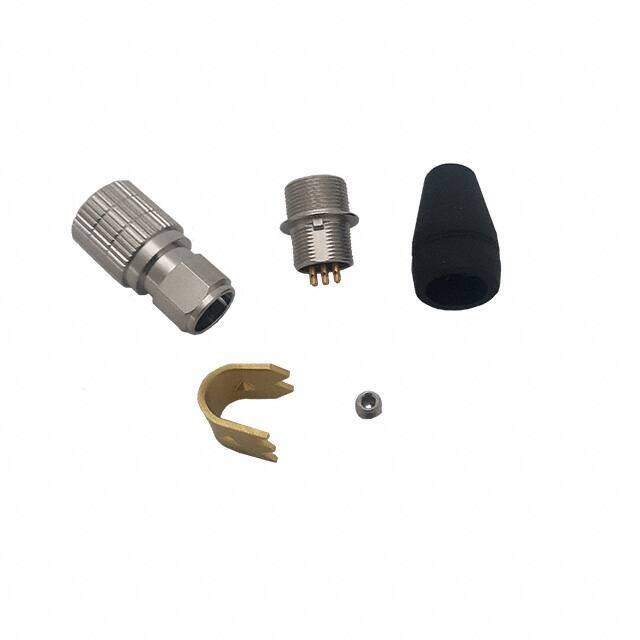

SD-PNL06-FFTAL-SX0-000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
Circular Connector
PDF
/
Buying Options
Total Price: USD $14
Unit Price: USD $14.0008
≥1 USD $14.0008
≥10 USD $12.13168
Inventory: 82
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Free Hanging (In-Line)
Shell Material Zinc Alloy
Insert Material Polyamide (PA46), Nylon 4/6
Backshell Material, Plating Brass, Nickel
Technical
Packaging Bulk
Feature Backshell, Cable Clamp, Strain Relief
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Cup
Connector Type Plug, Female Sockets
Number of Positions 6
Color Black, Silver
Fastening Type Threaded
Contact Finish - Mating Gold
Orientation Keyed
Shielding Unshielded
Ingress Protection IP67 - Dust Tight, Waterproof
Shell Finish Nickel
Shell Size - Insert M8-6
Cable Opening 0.197 (5.00mm)
Dimensions
Contact Finish Thickness - Mating 5.00μin 0.127μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
