4-2271137-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cable Assemblies / Circular Cable Assemblies
Description

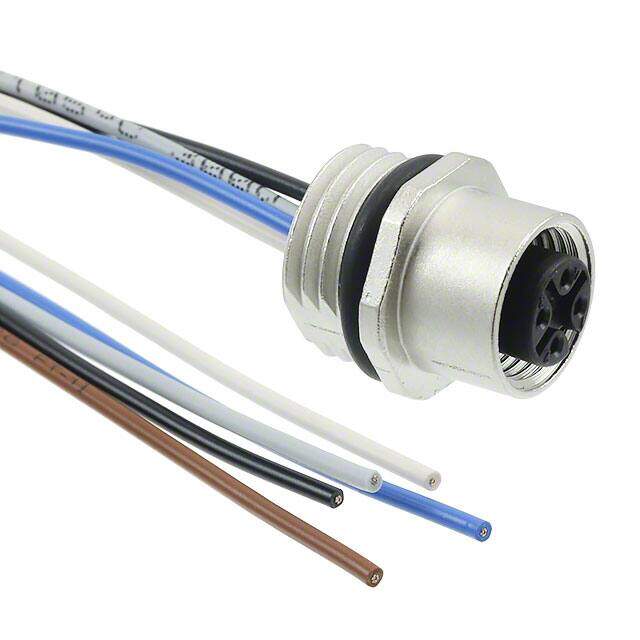

TE CONNECTIVITY 4-2271137-2. SENSOR CONNECTOR, RECEPTACLE, 5 POSITION, M12
PDF
/
Buying Options
Total Price: USD $9.03
Unit Price: USD $9.030126
≥1 USD $9.030126
≥200 USD $3.49494
≥500 USD $3.371527
≥1000 USD $3.311134
Inventory: 1088
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP68
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Length 0.66' 200.00mm
Technical
1st Connector Orientation A
2nd Connector Type Wire Leads
Assembly Configuration Standard
1st Connector Number of Positions 5
1st Connector Type Plug
1st Connector Number of Positions Loaded All
1st Connector Gender Female Sockets
Usage Industrial Environments
Cable Type Individual
ELV Compliant
Contact Gender Female
Current Rating 4A
Ingress Protection IP68 - Dust Tight, Waterproof
Shielding Unshielded
Orientation Straight
Contact Finish - Mating NOT SPECIFIED
Voltage - Rated DC 125V
Voltage - Rated 125V
Color Multiple
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Connector Type Socket
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series M12
Published 2014
Packaging Bulk
Physical
1st Connector Mounting Type Panel Mount
Housing Material Zinc
Mount Panel
Contact Plating Gold
Contact Material Bronze
Supply Chain
Factory Lead Time 10 Weeks
