1838286-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cable Assemblies / Circular Cable Assemblies
Description

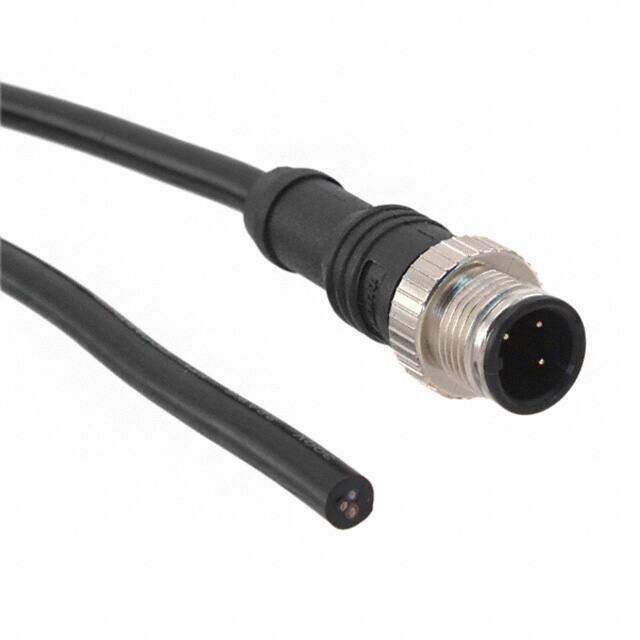

3 Position M8 Straight Male Connector with Strain Relief PVC Cable
PDF
/
Inventory: 7345
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings IP67
Lead Free Not Applicable
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Length 16.40' 5.00m
Technical
Conductor Diameter 645 μm
Connector Type B Connector, Free Ends
2nd Connector Type Wire Leads
Assembly Configuration Standard
Connector Type A Circular, Plug
1st Connector Type Plug
1st Connector Number of Positions Loaded All
1st Connector Gender Male Pins
Wire/Cable Diameter 5 mm
Usage Industrial Environments
Max Voltage Rating (DC) 6.06kV
Wire/Cable Gauge 22 AWG
Cable Length 5m
Cable Type Round
Max Current Rating 5A
Max Voltage Rating (AC) 60V
ELV Compliant
Contact Resistance 10mOhm
Lead Length 5m
Number of Contacts 3
Current Rating 5A
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Unshielded
Option GENERAL PURPOSE
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated 500V
Gender Male
Color Black
Min Operating Temperature -20°C
Max Operating Temperature 80°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series M8
Published 2007
Packaging Box
Physical
Cable Material Polyvinyl Chloride (PVC)
1st Connector Mounting Type Free Hanging (In-Line)
Housing Material Polyurethane
Insulation Material PVC
Contact Plating Gold
Contact Material Brass
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 12 Weeks
