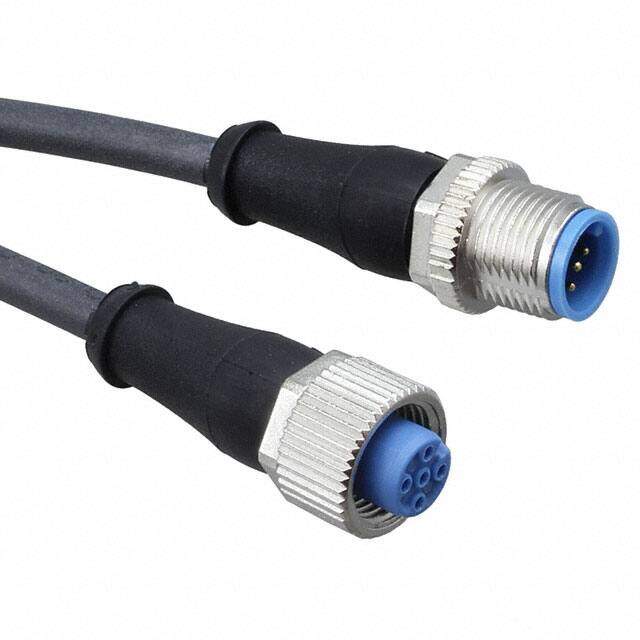

1-2273114-3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cable Assemblies / Circular Cable Assemblies
Description
Cable Assembly PVC 1m 22AWG 5POS M12 Circular to 5POS M12 Circular M-F Carton
PDF
/
Buying Options
Total Price: USD $16.74
Unit Price: USD $16.7376
≥1 USD $16.7376
Inventory: 84
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Length 3.28' 1.00m
Technical
2nd Connector Shell Size - Insert M12
2nd Connector Orientation AA
2nd Connector Number of Positions Loaded All
2nd Connector Number of Positions 5
Wire/Cable Color Black
2nd Connector Gender Male Pins
1st Connector Shell Size - Insert M12
1st Connector Orientation AA
2nd Connector Type Plug
Assembly Configuration Standard
1st Connector Number of Positions 5
1st Connector Type Receptacle
1st Connector Number of Positions Loaded All
1st Connector Gender Female Sockets
Wire/Cable Diameter 5.1816 mm
Thread Size M12
Contact Current Rating 4A
Usage Industrial Environments
Wire/Cable Gauge 22 AWG
Cable Length 1m
Wire/Cable Type PVC
Cable Type Round
ELV Compliant
Operating Supply Voltage 125V
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Shielding Unshielded
Color Black
Min Operating Temperature -30°C
Max Operating Temperature 80°C
Number of Positions 5
Connector Type Plug, Receptacle
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series M12
Published 2014
Packaging Box
Physical
2nd Connector Mounting Type Free Hanging (In-Line)
Cable Material Polyvinyl Chloride (PVC)
1st Connector Mounting Type Free Hanging (In-Line)
Housing Material Plastic
Insulation Material PVC
Number of Pins 5
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Factory Lead Time 19 Weeks
