1693788
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cable Assemblies / Circular Cable Assemblies
Description

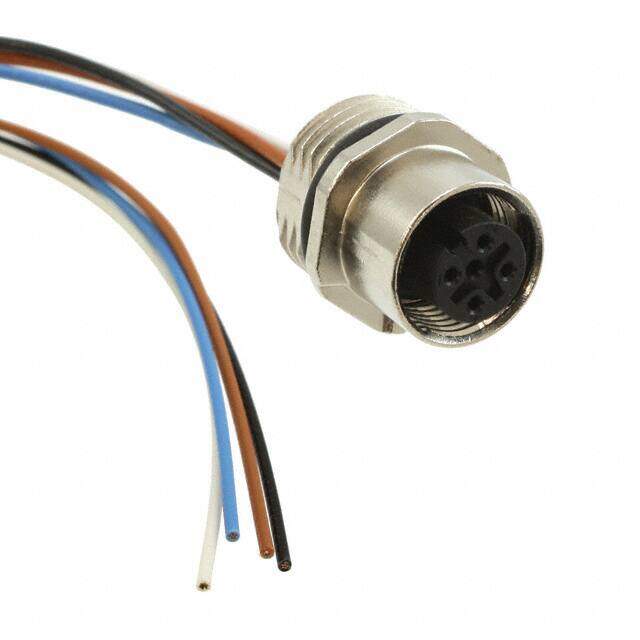

Circular Metric Connectors M12 BLHD SKT 4P W/CB
PDF
/
Buying Options
Total Price: USD $15.23
Unit Price: USD $15.2328
≥1 USD $15.2328
Inventory: 687
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material CuZn
Contact Plating Gold
Mount Screw
Weight 20.999994g
1st Connector Mounting Type Panel Feed Through
Cable Material Thermoplastic Elastomer (TPE)
Technical
Published 2009
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Circular, Wire Leads
Number of Positions 4
Max Operating Temperature 85°C
Min Operating Temperature -25°C
Color Multiple
Gender Male
Voltage - Rated 250V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 4
Orientation Straight
Shielding Unshielded
Ingress Protection IP67 - Dust Tight, Waterproof
Reach Compliance Code unknown
Current Rating 4A
Contact Gender Female
Empty Shell NO
Max Current Rating 4A
Cable Type Round
Wire/Cable Type Individual
Cable Length 500mm
Usage Industrial Environments
1st Connector Gender Female Sockets
1st Connector Number of Positions Loaded All
1st Connector Type Plug
Connector Type A Circular
Assembly Configuration Standard
2nd Connector Type Wire Leads
1st Connector Orientation A
1st Connector Shell Size - Insert M12
Dimensions
Length 1.64' 500.00mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings IP67
