1681813
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cable Assemblies / Circular Cable Assemblies
Description

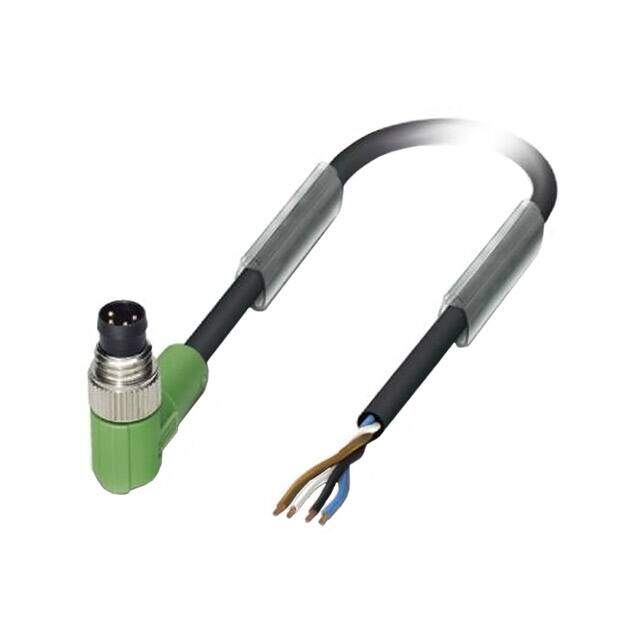

Sensor Cables / Actuator Cables SAC-4P-M8MR/1.5 PUR
PDF
/
Buying Options
Total Price: USD $14.84
Unit Price: USD $14.839502
≥1 USD $14.839502
≥10 USD $13.999527
≥100 USD $13.2071
≥500 USD $12.459531
≥1000 USD $11.754271
Inventory: 1707
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Length 4.92' 1.50m
Technical
Number of Strands 32
Number of Cores 4
1st Connector Shell Size - Insert M8
2nd Connector Type Wire Leads
Assembly Configuration Standard
Connector Type A Circular
1st Connector Type Receptacle, Right Angle
1st Connector Number of Positions Loaded All
1st Connector Gender Male Pins
Halogen Free Halogen Free
Usage Industrial Environments
Wire/Cable Gauge 24 AWG
Cable Length 1.5m
Coupling Type THREADED
Cable Type Round
Max Current Rating 4A
Body/Shell Style PLUG
Empty Shell NO
Current Rating 4A
Ingress Protection IP65/67/68 - Dust Tight, Water Resistant, Waterproof
Shielding Unshielded
Total Number of Contacts 4
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated 30V
Gender Male
Color Black
Min Operating Temperature -25°C
Max Operating Temperature 80°C
Connector Type Circular, Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Published 2011
Physical
Cable Material Polyurethane (PUR)
1st Connector Mounting Type Free Hanging (In-Line)
Conductor Material Copper
Weight 44.600008g
Shell Material POLYBUTYLENE TEREPHTHALATE
Insulation Material PUR
Contact Plating Gold
Contact Material Bronze
Supply Chain
Factory Lead Time 4 Weeks
