1681664
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cable Assemblies / Circular Cable Assemblies
Description

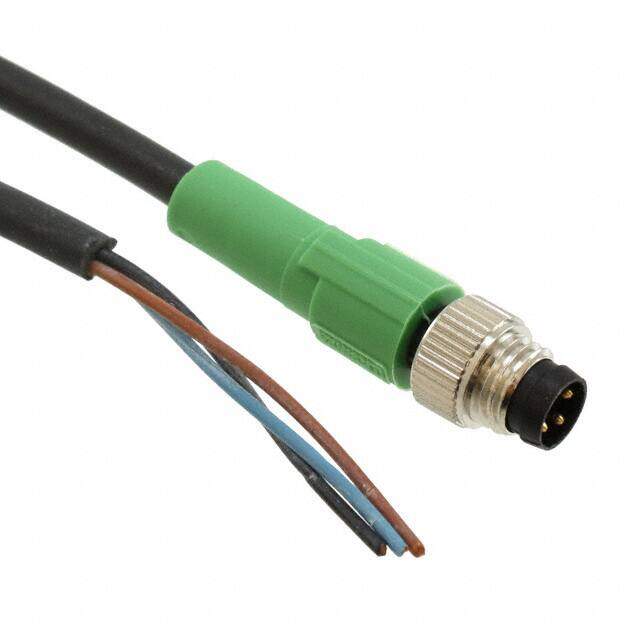

Cable Assembly Sensor 1.5m 23AWG 3 POS Circular M
PDF
/
Buying Options
Total Price: USD $13.09
Unit Price: USD $13.0856
≥1 USD $13.0856
≥10 USD $12.03752
≥100 USD $11.121264
≥500 USD $10.597928
≥1000 USD $10.53976
Inventory: 36
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP65
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Length 4.92' 1.50m
Diameter 100 μm
Technical
Input Current 3A
1st Connector Shell Size - Insert M8
2nd Connector Type Wire Leads
Assembly Configuration Standard
1st Connector Number of Positions 3
Connector Type A Circular
1st Connector Type Receptacle
1st Connector Number of Positions Loaded All
1st Connector Gender Male Pins
Wire/Cable Diameter 4.4 mm
Usage Industrial Environments
Wire/Cable Gauge 23 AWG
Cable Length 1.5m
Coupling Type THREADED
Cable Type Round
Max Current Rating 3A
Body/Shell Style PLUG
Empty Shell NO
Approval Agency UL
Number of Conductors 32
Current Rating 3A
Reach Compliance Code unknown
Ingress Protection IP65/67/68 - Dust Tight, Water Resistant, Waterproof
Shielding Unshielded
Total Number of Contacts 3
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated DC 100V
Voltage - Rated 60V
Gender Male
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 80°C
Connector Type Circular, Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Published 2005
Physical
Cable Material Polyurethane (PUR)
1st Connector Mounting Type Free Hanging (In-Line)
Weight 41.999989g
Shell Material POLYBUTYLENE TEREPHTHALATE
Contact Plating Gold
Contact Material Bronze
Supply Chain
Factory Lead Time 4 Weeks
