1671108
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cable Assemblies / Circular Cable Assemblies
Description

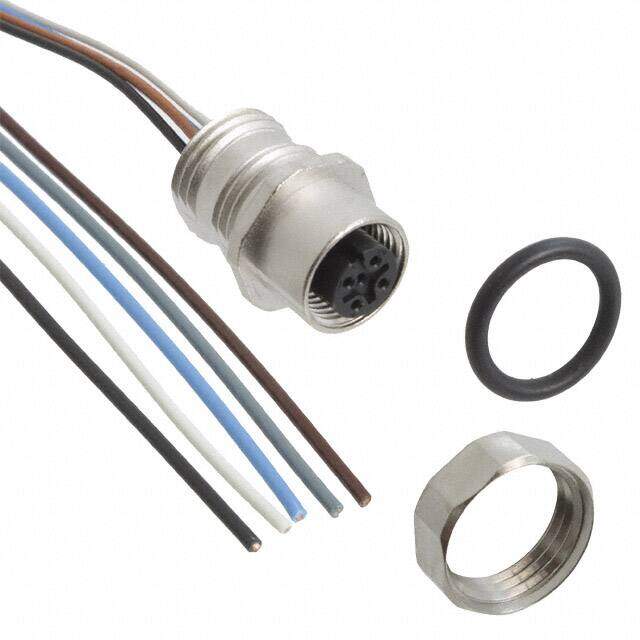

Circular Metric Connectors M12 BLHD PLG 5P W/CB
PDF
/
Buying Options
Total Price: USD $24.28
Unit Price: USD $24.2792
≥1 USD $24.2792
≥10 USD $22.33704
≥100 USD $20.637408
≥500 USD $19.666152
≥1000 USD $18.452122
≥3000 USD $17.602429
Inventory: 56
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP67
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Length 1.64' 500.00mm
Technical
1st Connector Shell Size - Insert M12
1st Connector Orientation A
2nd Connector Type Wire Leads
Assembly Configuration Standard
Connector Type A Circular, Receptacle
1st Connector Type Plug
1st Connector Number of Positions Loaded All
1st Connector Gender Female Sockets
Usage Industrial Environments
Wire/Cable Gauge 22 AWG
Cable Length 500mm
Cable Type Individual
Max Current Rating 4A
Empty Shell NO
Contact Gender Female
Current Rating 4A
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Unshielded
Orientation Straight
Total Number of Contacts 5
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated 60V
Gender Male
Color Multiple
Min Operating Temperature -25°C
Max Operating Temperature 85°C
Number of Positions 5
Connector Type Circular, Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2012
Physical
Cable Material Thermoplastic Elastomer (TPE)
1st Connector Mounting Type Panel Feed Through
Weight 28.349523g
Housing Material Polyamide
Mount Screw
Contact Plating Gold
Contact Material Brass, CuZn
Supply Chain
Factory Lead Time 8 Weeks
