1668140
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cable Assemblies / Circular Cable Assemblies
Description

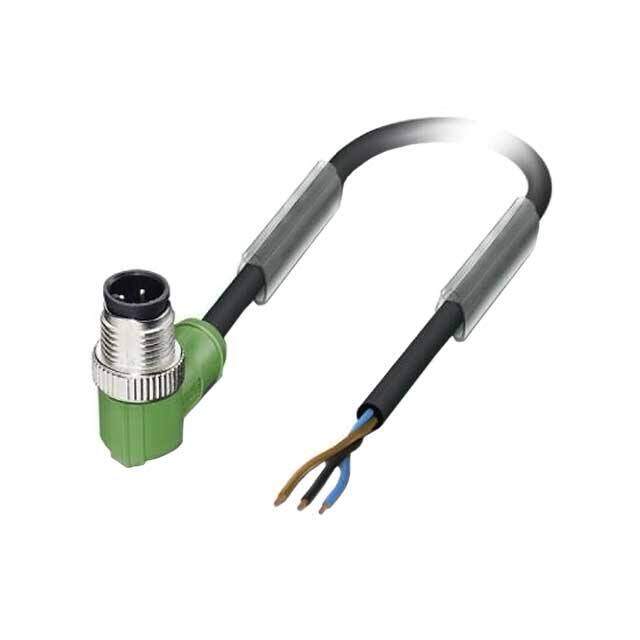

Cable Assembly Sensor/Actuator 3m 22AWG Circular 3 POS M
PDF
/
Inventory: 6054
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Length 9.84' 3.00m
Technical
1st Connector Shell Size - Insert M12
1st Connector Orientation A
2nd Connector Type Wire Leads
Assembly Configuration Standard
Connector Type A Circular, Plug
1st Connector Type Receptacle, Right Angle
1st Connector Number of Positions Loaded All
1st Connector Gender Male Pins
Usage Industrial Environments
Wire/Cable Gauge 22 AWG
Cable Length 3m
Cable Type Round
Max Current Rating 4A
Empty Shell NO
Approval Agency UL
Current Rating 4A
Ingress Protection IP65/67/68 - Dust Tight, Water Resistant, Waterproof
Shielding Unshielded
Total Number of Contacts 3
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Voltage - Rated DC 320V
Voltage - Rated 320V
Gender Male
Color Black
Min Operating Temperature -25°C
Max Operating Temperature 90°C
Number of Positions 3
Connector Type Circular
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Published 2010
Physical
Cable Material Polyurethane (PUR)
1st Connector Mounting Type Free Hanging (In-Line)
Weight 85.048569g
Contact Plating Gold
Contact Material Brass
Supply Chain
Factory Lead Time 6 Weeks
