1554681
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cable Assemblies / Circular Cable Assemblies
Description

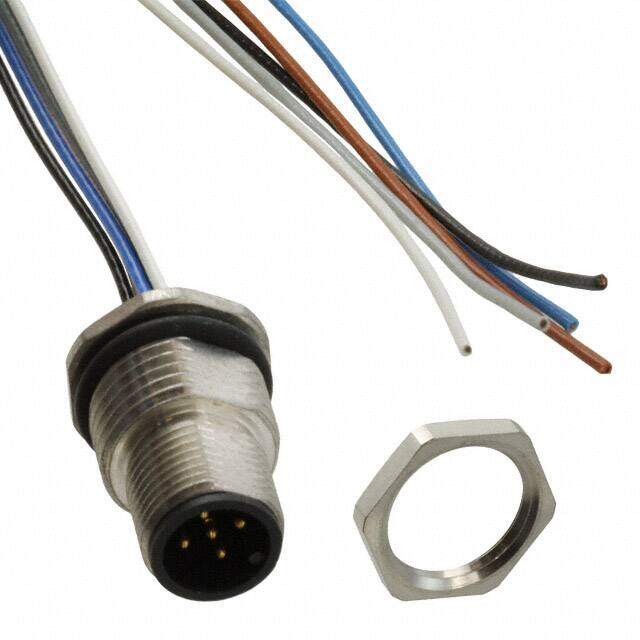

Circular Metric Connectors SACC-DSI-M12M S-5CON-PG9/0,5 VA
PDF
/
Buying Options
Total Price: USD $36.11
Unit Price: USD $36.1064
≥1 USD $36.1064
≥10 USD $33.21912
≥100 USD $30.691232
≥500 USD $29.246976
≥1000 USD $29.086429
Inventory: 83
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material COPPER ZINC
Weight 24.200003g
1st Connector Mounting Type Panel Mount
Cable Material Thermoplastic Elastomer (TPE)
Technical
Published 2009
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Circular, Wire Leads
Max Operating Temperature 85°C
Min Operating Temperature -25°C
Color Multiple
Voltage - Rated 60V
Contact Finish - Mating GOLD
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 5
Shielding Unshielded
Ingress Protection IP67 - Dust Tight, Waterproof
Reach Compliance Code unknown
Current Rating 4A
Empty Shell NO
Body/Shell Style PLUG
Max Current Rating 4A
Cable Type Individual
Cable Length 500mm
Wire/Cable Gauge 24 AWG
Contact Finish Termination GOLD
Usage Industrial Environments
1st Connector Gender Male Pins
1st Connector Number of Positions Loaded All
1st Connector Type Receptacle
1st Connector Number of Positions 5
Assembly Configuration Standard
2nd Connector Type Wire Leads
1st Connector Orientation A
1st Connector Shell Size - Insert M12
Dimensions
Length 1.64' 500.00mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
