1520042
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cable Assemblies / Circular Cable Assemblies
Description

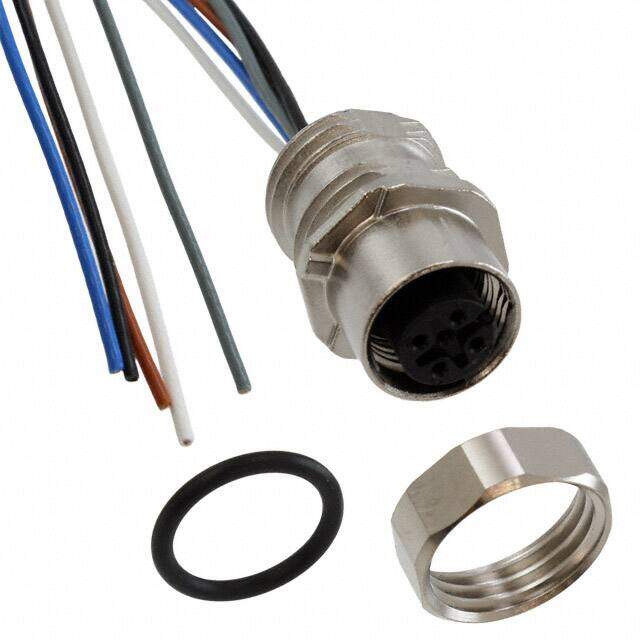

Circular Metric Connectors SACC-EC-FS-5CON- M16/0,5 SCO
PDF
/
Buying Options
Total Price: USD $26.58
Unit Price: USD $26.576
≥1 USD $26.576
≥10 USD $24.44992
≥100 USD $22.589776
≥500 USD $21.526648
≥1000 USD $20.19783
Inventory: 12
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Brass, CuZn
Contact Plating Gold
Mount Front
Weight 29.500003g
Conductor Material Copper, Tin
1st Connector Mounting Type Panel Mount
Cable Material Thermoplastic Elastomer (TPE)
Technical
Packaging Bulk
Published 2010
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Circular, Wire Leads
Number of Positions 5
Max Operating Temperature 85°C
Min Operating Temperature -25°C
Color Multiple
Voltage - Rated 60V
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Total Number of Contacts 5
Shielding Unshielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 4A
Approval Agency IEC, cULus
Empty Shell NO
Insulation Resistance 100MOhm
Max Current Rating 4A
Cable Type Individual
Cable Length 500mm
Wire/Cable Gauge 22 AWG
Usage Industrial Environments
1st Connector Gender Female Sockets
1st Connector Number of Positions Loaded All
1st Connector Type Plug
Connector Type A Circular
Assembly Configuration Standard
2nd Connector Type Wire Leads
1st Connector Orientation A
1st Connector Shell Size - Insert M12
Dimensions
Length 1.64' 500.00mm
Compliance
RoHS Status RoHS Compliant
Ratings IP67
