1453452
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cable Assemblies / Circular Cable Assemblies
Description

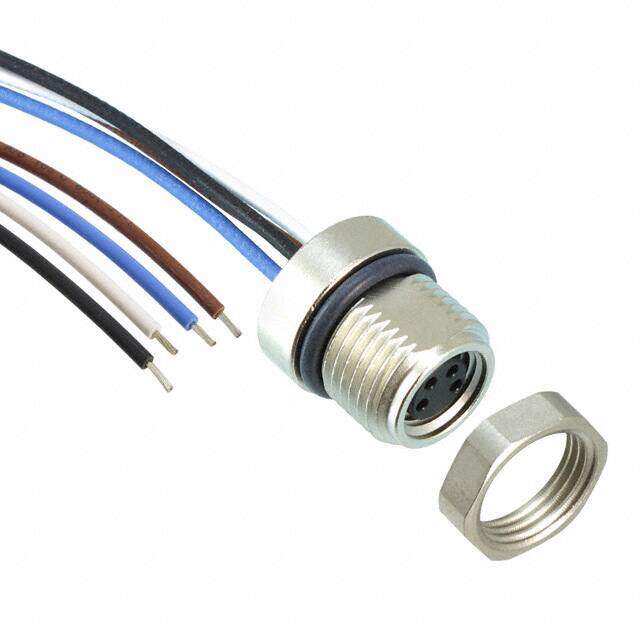

Circular Metric Connectors 4-pos. pigtail, M8 Rear mnt w/ M12 thrd
PDF
/
Buying Options
Total Price: USD $20.68
Unit Price: USD $20.68
≥1 USD $20.68
≥10 USD $19.02472
≥100 USD $17.577296
≥500 USD $16.750096
≥1000 USD $16.658189
Inventory: 777
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Weight 19.999993g
Conductor Material Copper, Tin
1st Connector Mounting Type Panel Mount
Cable Material Thermoplastic Elastomer (TPE)
Technical
Published 2011
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Circular, Wire Leads
Number of Positions 4
Max Operating Temperature 85°C
Min Operating Temperature -25°C
Color Multiple
Gender Female
Voltage - Rated 30V
Contact Finish - Mating GOLD
Shielding Unshielded
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 4A
Approval Agency IEC
Insulation Resistance 100MOhm
Max Current Rating 4A
Cable Type Individual
Cable Length 500mm
Wire/Cable Gauge 24 AWG
Contact Finish Termination Gold (Au)
Usage Industrial Environments
Thread Size M12
1st Connector Gender Female Sockets
1st Connector Number of Positions Loaded All
1st Connector Type Receptacle
Connector Type A Circular
Assembly Configuration Standard
2nd Connector Type Wire Leads
1st Connector Shell Size - Insert M8
Dimensions
Length 1.64' 500.00mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings IP67
