1406048
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cable Assemblies / Circular Cable Assemblies
Description

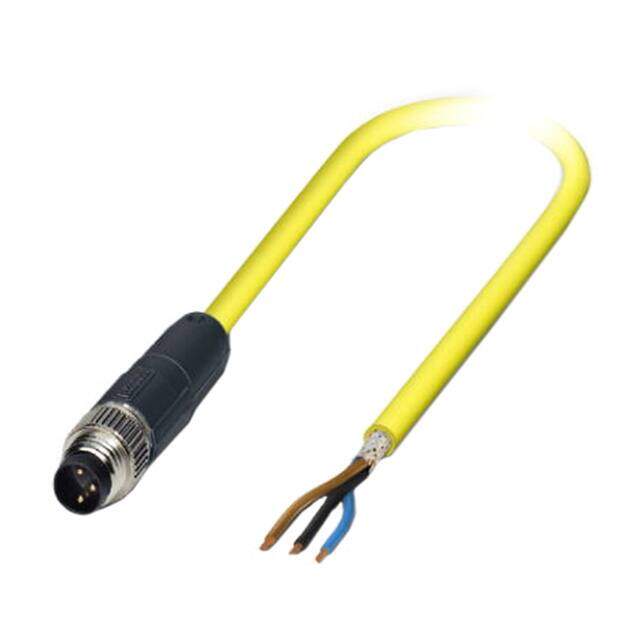

Sensor Cables / Actuator Cables SAC-3P-M8MS/ 2.0-542 SH BK
PDF
/
Buying Options
Total Price: USD $13.73
Unit Price: USD $13.728
≥1 USD $13.728
Inventory: 75
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP67
RoHS Status RoHS Compliant
Dimensions
Length 6.56' 2.00m
Technical
1st Connector Shell Size - Insert M8
Connector Type B Connector
2nd Connector Type Wire Leads
Assembly Configuration Standard
1st Connector Type Receptacle
1st Connector Number of Positions Loaded All
1st Connector Gender Male Pins
Usage Industrial Environments
Wire/Cable Gauge 24 AWG
Cable Length 2m
Cable Type Round
Max Current Rating 4A
Insulation Resistance 100MOhm
Approval Agency IEC, UL
Current Rating 4A
Reach Compliance Code not_compliant
Ingress Protection IP65/67 - Dust Tight, Water Resistant, Waterproof
Shielding Shielded
Voltage - Rated 60V
Gender Male
Color Yellow
Min Operating Temperature -25°C
Max Operating Temperature 90°C
Number of Positions 3
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2013
Physical
Cable Material Polyvinyl Chloride (PVC)
1st Connector Mounting Type Free Hanging (In-Line)
Conductor Material Copper, Tin
Weight 99.999994g
Insulation Material PVC
Contact Plating Gold
Contact Material Bronze, CuSn
Supply Chain
Factory Lead Time 4 Weeks
