P29026-M1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cable Assemblies / Circular Cable Assemblies
Description

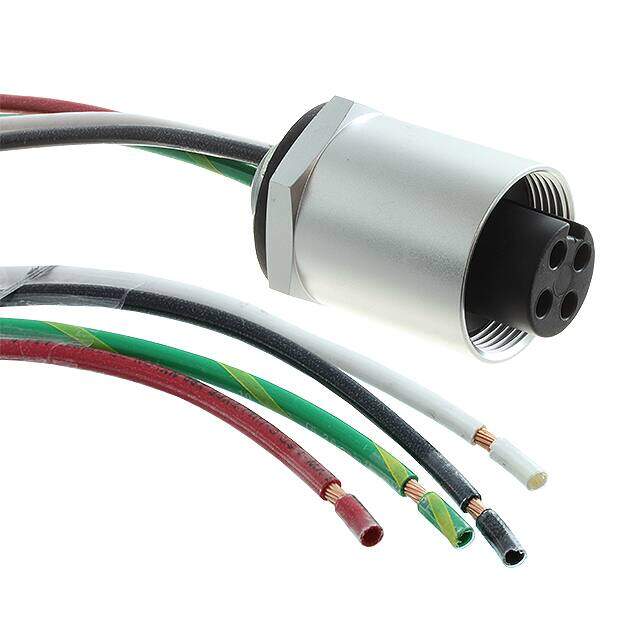

DC Power Cords RECPT 10AWG 4P F 1/2-14NPT SIN KY 1M
PDF
/
Inventory: 8803
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Plating Gold
Number of Pins 4
1st Connector Mounting Type Panel Mount
Technical
Published 2014
Series PowerBOSSlite? M35
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Connector Type Circular
Max Operating Temperature 90°C
Min Operating Temperature -20°C
Color Multiple
Gender Female
Shielding Unshielded
Ingress Protection IP67 - Dust Tight, Waterproof
Number of Conductors 4
Number of Contacts 4
Max Voltage Rating (AC) 600V
Max Current Rating 25A
Cable Type Individual
Cable Length 1m
Wire/Cable Gauge 10 AWG
Max Voltage Rating (DC) 600V
Usage Industrial Environments
1st Connector Gender Female Sockets
1st Connector Number of Positions Loaded All
1st Connector Type Receptacle
Connector Type A Circular, Connector
1st Connector Number of Positions 4
Assembly Configuration Standard
2nd Connector Type Wire Leads
1st Connector Orientation Keyed
1st Connector Shell Size - Insert M35
Dimensions
Length 3.28' 1.00m
Compliance
RoHS Status ROHS3 Compliant
