MN41PW02M010
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cable Assemblies / Circular Cable Assemblies
Description

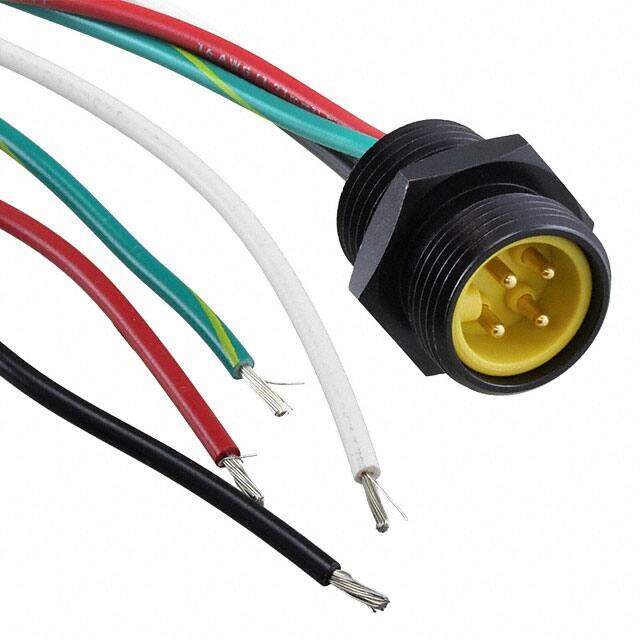

DC Power Cords 4 PIN MINI M RECPT US/NEC CLR CD 1M
PDF
/
Buying Options
Total Price: USD $27.51
Unit Price: USD $27.5088
≥1 USD $27.5088
≥10 USD $24.08912
≥100 USD $23.04779
≥500 USD $22.30448
≥1000 USD $21.560968
≥3000 USD $20.371402
Inventory: 83
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Length 3.28' 1.00m
Technical
1st Connector Shell Size - Insert 7/8 M22
Connector Type B Connector
1st Connector Orientation Keyed
2nd Connector Type Wire Leads
Assembly Configuration Standard
1st Connector Number of Positions 4
Connector Type A Circular, Receptacle
1st Connector Type Receptacle
1st Connector Number of Positions Loaded All
1st Connector Gender Male Pins
Usage Industrial Environments
Wire/Cable Gauge 16 AWG
Cable Length 1m
Wire/Cable Type Wire Lead
Cable Type Individual
Max Current Rating 10A
Max Voltage Rating (AC) 600V
Number of Contacts 4
Number of Conductors 4
Current Rating 10A
Ingress Protection IP67 - Dust Tight, Waterproof
Shielding Unshielded
Voltage - Rated 600V
Gender Male
Color Multiple
Min Operating Temperature -20°C
Max Operating Temperature 105°C
Connector Type Circular
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series miniBOSS? M22
Physical
1st Connector Mounting Type Free Hanging (In-Line)
Insulation Material PVC
Number of Pins 4
Contact Plating Gold
Supply Chain
Factory Lead Time 12 Weeks
Alternative Model
