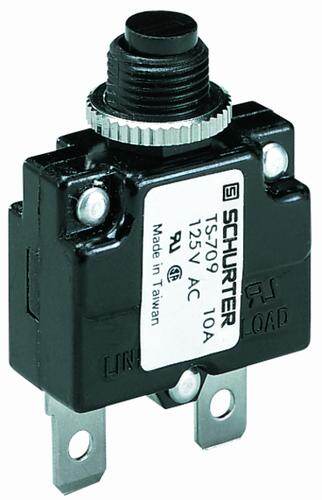

TS-709-10P
RoHS
RoHS compliant
RoHS compliantPackage /
Category Circuit Protection / Circuit Breakers
Description
CIR BRKR THRM 10A 250VAC 50VDC
PDF
/
Inventory: 6086
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Panel
Mounting Type Panel Mount
Weight 24.999999g
Technical
Packaging Bulk
Published 2012
Series TS
Part Status Active
Moisture Sensitivity Level (MSL) Vendor Undefined
Termination Quick Connect
Max Operating Temperature 60°C
Min Operating Temperature -10°C
Voltage - Rated DC 50V
Current Rating 10A
Reference Standard CSA; UL
Voltage - Rated AC 250V
Approval Agency CSA C22.2, UL1077
Body Length or Diameter 29.5mm
Actuator Type Push to Reset
Number of Poles 1
Breaker Type Thermal
Rated Breaking Capacity 200 A
Circuit Function TRIP FREE
Dimensions
Body Height 22.5mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
