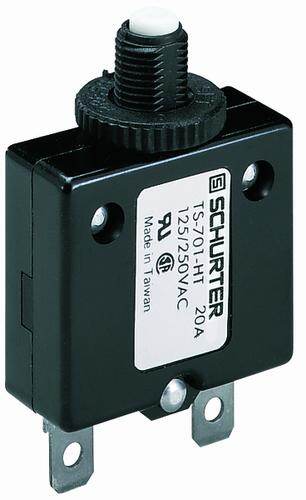

TS-701-HT-5H
RoHS
RoHS compliant
RoHS compliantPackage /
Category Circuit Protection / Circuit Breakers
Description
Circuit Breakers 5A Thermal Reset 1-pole thread w/ nut
PDF
/
Inventory: 1499
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Panel
Mounting Type Panel Mount
Weight 24.999999g
Technical
Published 2012
Series TS
Part Status Active
Moisture Sensitivity Level (MSL) Vendor Undefined
Termination Quick Connect
Max Operating Temperature 60°C
Min Operating Temperature -10°C
Voltage - Rated DC 50V
Reach Compliance Code unknown
Current Rating 5A
Voltage - Rated AC 250V
Approval Agency CSA C22.2, UL1077
Actuator Type Push to Reset
Number of Poles 1
Breaker Type Thermal
Dimensions
Height 31mm
Length 35.5mm
Width 14.6mm
Compliance
RoHS Status ROHS3 Compliant
