4435.0055
RoHS
RoHS compliant
RoHS compliantPackage /
Category Circuit Protection / Circuit Breakers
Description

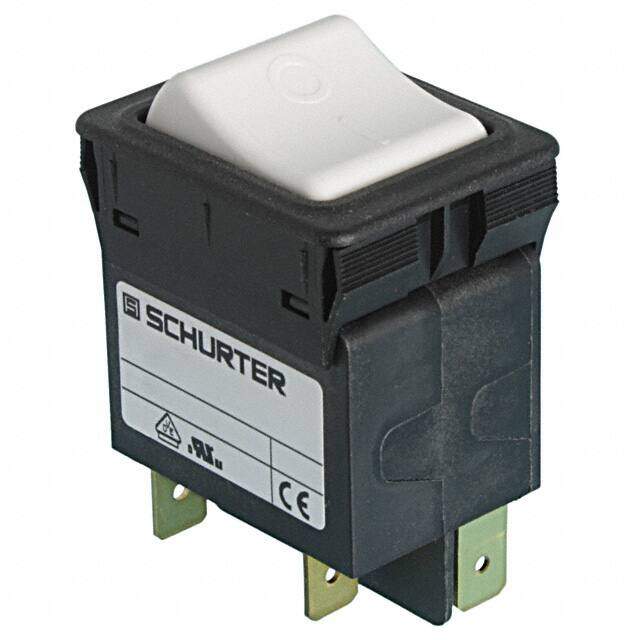

CIR BRKR THRM 16A 240VAC 60VDC
PDF
/
Buying Options
Total Price: USD $3.32
Unit Price: USD $3.317698
≥1 USD $3.317698
Inventory: 4533
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Snap in
Mounting Type Panel Mount
Weight 31.3g
Technical
Series TA35
Part Status Active
Moisture Sensitivity Level (MSL) Vendor Undefined
Termination Quick Connect
Max Operating Temperature 60°C
Min Operating Temperature 0°C
Voltage - Rated 240V
Voltage - Rated DC 60V
Current Rating (Amps) 16A
Current Rating 16A
Voltage - Rated AC 240V
Approval Agency CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, UL1077
Actuator Type Rocker
Number of Poles 2
Breaker Type Thermal
Dimensions
Height 36mm
Length 44.1mm
Width 29mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
