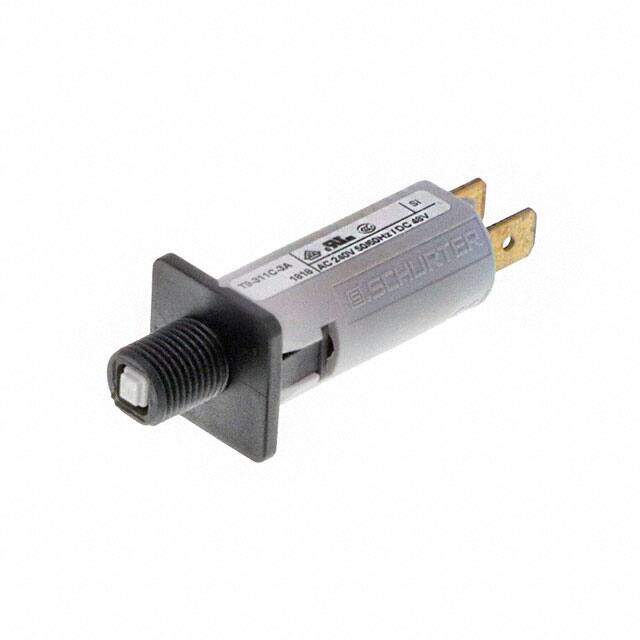

4404.0001
RoHS
RoHS compliant
RoHS compliantPackage 0001
Category Circuit Protection / Circuit Breakers
Description
CIR BRKR THRM 4A 240VAC 48VDC
PDF
/
Buying Options
Total Price: USD $2.95
Unit Price: USD $2.948
≥1 USD $2.948
≥10 USD $2.28536
≥100 USD $1.92104
≥500 USD $1.558691
Inventory: 111
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP40
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 19mm
Length 34mm
Technical
Breaker Type Thermal
Number of Poles 1
Insulation Resistance 100MOhm
Actuator Type Push to Reset
Approval Agency CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, UL1077
Voltage - Rated AC 240V
Current Rating 4A
Depth 47.5mm
Voltage - Rated DC 48V
Min Operating Temperature -5°C
Max Operating Temperature 50°C
Termination Quick Connect
Moisture Sensitivity Level (MSL) Vendor Undefined
Part Status Active
Series T9-611
Physical
Weight 9.599999g
Package / Case 0001
Mounting Type Panel Mount
Mount Snap in
Supply Chain
Factory Lead Time 23 Weeks
Alternative Model
