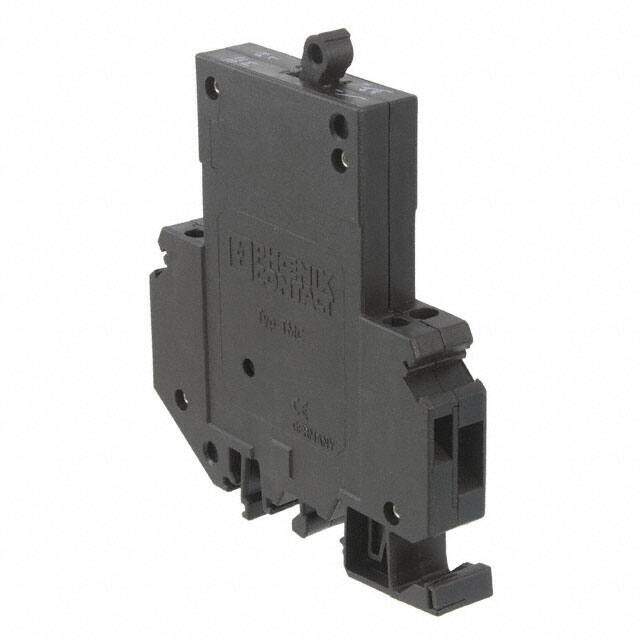

0915069
RoHS
RoHS compliant
RoHS compliantPackage /
Category Circuit Protection / Circuit Breakers
Description
TMC 2 DIN Rail CSA UL VDE Thermal Magnetic Circuit Breaker 250V 10A 60C 10AWG
PDF
/
Buying Options
Total Price: USD $135.05
Unit Price: USD $135.0536
≥1 USD $135.0536
Inventory: 81
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Dimensions
Width 12.5mm
Length 96mm
Height 82.5mm
Technical
Trip Current 10A
Terminal and Terminal Block Type MODULAR TERMINAL BLOCK
Breaker Type Thermal Magnetic
Number of Poles 2
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 10 AWG
Actuator Type Lever
Approval Agency CSA, UL, VDE
Voltage - Rated AC 250V
Current Rating 10A
Reach Compliance Code unknown
Voltage - Rated DC 65V
HTS Code 8536.69.40.40
Color Black
Min Operating Temperature -30°C
Max Operating Temperature 60°C
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Series TMC
Physical
Housing Material Polyamide
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 4 Weeks
