0914510
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Circuit Protection / Circuit Breakers
Description

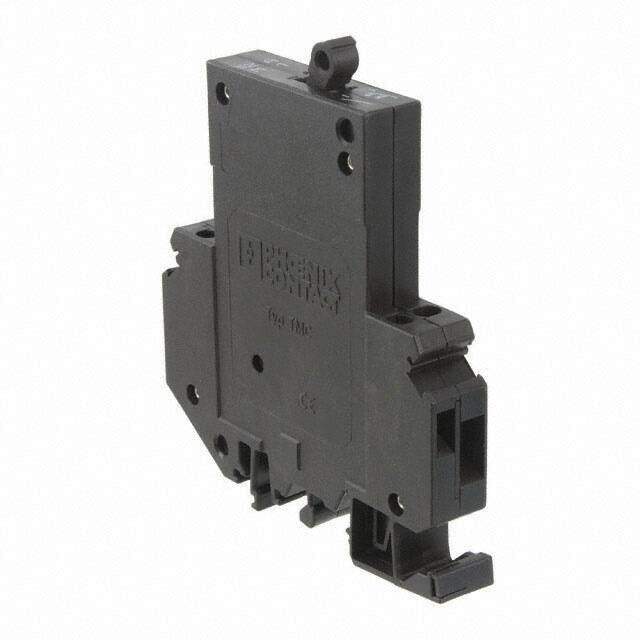

Circuit Breaker Thermomagnetic 1Pole 8A 250VAC/65VDC
PDF
/
Buying Options
Total Price: USD $75.97
Unit Price: USD $75.9704
≥1 USD $75.9704
≥10 USD $73.5944
≥100 USD $65.945088
Inventory: 29
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Package / Case 100
Housing Material Polyamide
Technical
Series TMC
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Screw
ECCN Code EAR99
Number of Positions 4
Max Operating Temperature 60°C
Min Operating Temperature -30°C
Color Black
Voltage - Rated DC 65V
Current Rating 8A
Voltage - Rated AC 250V
Approval Agency CSA, UL, VDE
Actuator Type Lever
Wire Gauge (Max) 10 AWG
Wire Gauge (Min) 24 AWG
Number of Poles 1
Breaker Type Thermal Magnetic
Terminal and Terminal Block Type MODULAR TERMINAL BLOCK
Trip Current 8A
Dimensions
Height 96mm
Length 83.5mm
Width 12.5mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
