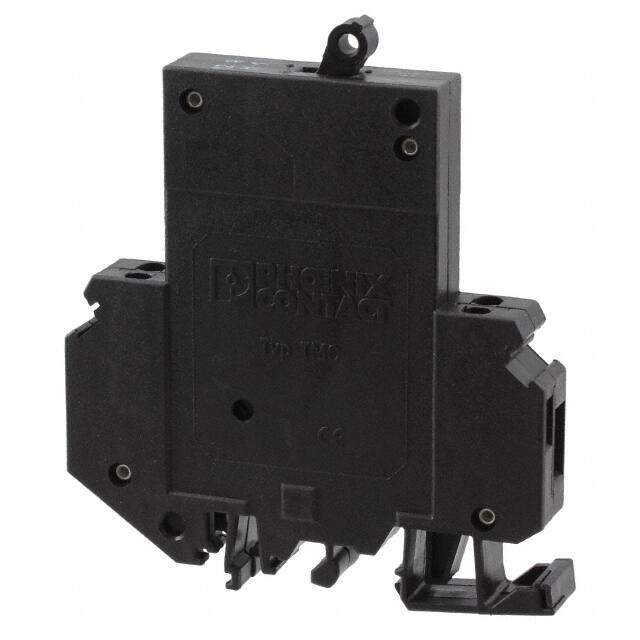

0914170
RoHS
/
Package /
Category Circuit Protection / Circuit Breakers
Description
Circuit Breaker Thermomagnetic 1Pole 12A 250VAC/65VDC
PDF
/
Inventory: 3675
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings IP20
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Dimensions
Width 12.5mm
Length 83.5mm
Height 82.5mm
Technical
Terminal and Terminal Block Type MODULAR TERMINAL BLOCK
Breaker Type Thermal Magnetic
Number of Poles 1
Number of Levels 2
Actuator Type Lever
Approval Agency CSA, UL
Voltage - Rated AC 250V
Current Rating 12A
Depth 96mm
Voltage - Rated DC 65V
HTS Code 8536.69.40.40
Color Black
Min Operating Temperature -30°C
Max Operating Temperature 60°C
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Pbfree Code yes
Series TMC
Physical
Mounting Type DIN Rail
Mount DIN Rail
