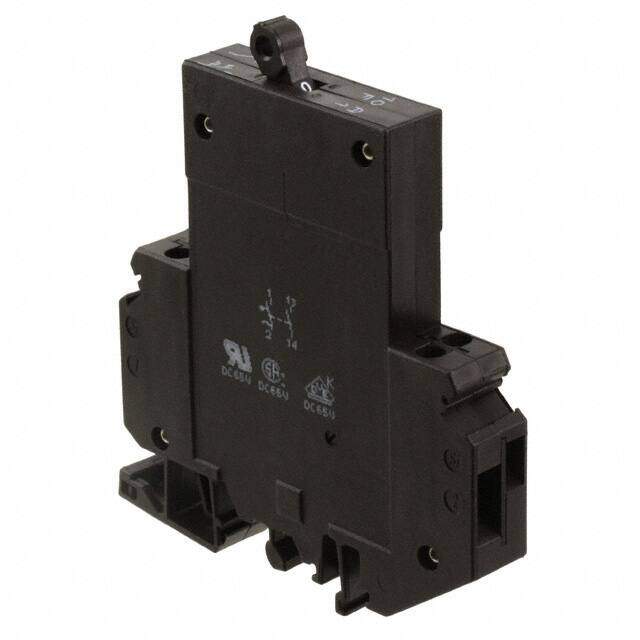

0914112
RoHS
RoHS compliant
RoHS compliantPackage /
Category Circuit Protection / Circuit Breakers
Description
Circuit Breaker Thermomagnetic 1Pole 3A 250VAC/65VDC
PDF
/
Buying Options
Total Price: USD $75.97
Unit Price: USD $75.9704
≥1 USD $75.9704
≥10 USD $73.5944
≥100 USD $65.945088
Inventory: 35
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-2
RoHS Status RoHS Compliant
Dimensions
Width 12.5mm
Length 83.5mm
Height 96mm
Technical
Trip Current 3A
Terminal and Terminal Block Type MODULAR TERMINAL BLOCK
Breaker Type Thermal Magnetic
Number of Poles 1
Wire Gauge (Min) 24 AWG
Wire Gauge (Max) 10 AWG
Actuator Type Lever
Voltage - Rated AC 250V
Current Rating 3A
Reach Compliance Code unknown
Voltage - Rated DC 65V
Color Black
Min Operating Temperature -30°C
Max Operating Temperature 60°C
Number of Positions 4
ECCN Code EAR99
Termination Screw
Part Status Active
Pbfree Code yes
Series TMC
Physical
Housing Material Polyamide
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 11 Weeks
