0903039
RoHS
RoHS compliant
RoHS compliantPackage /
Category Circuit Protection / Circuit Breakers
Description

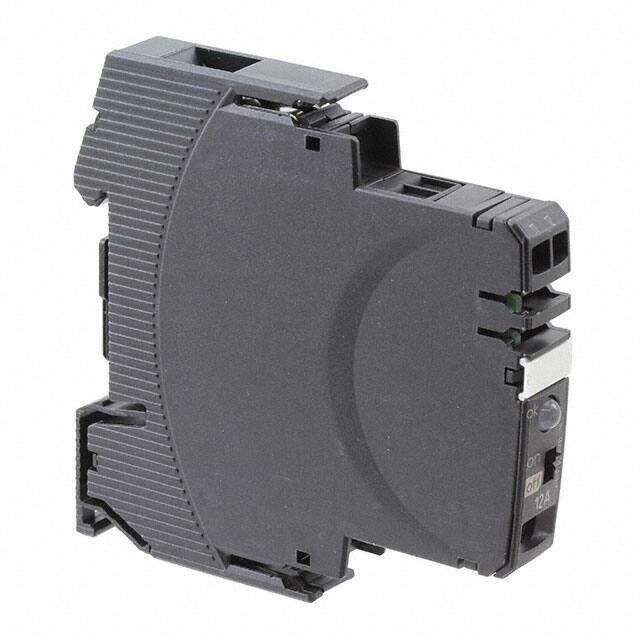

Circuit Breakers EC-E4 12A 12 A, N/C SIGNAL CNT
PDF
/
Buying Options
Total Price: USD $92
Unit Price: USD $91.9952
≥1 USD $91.9952
≥10 USD $89.12376
≥100 USD $79.86
Inventory: 97
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount DIN Rail
Mounting Type DIN Rail
Technical
Series CLIPLINE
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Screw
Max Operating Temperature 50°C
Min Operating Temperature 0°C
Color Black
Voltage - Rated DC 24V
Reach Compliance Code unknown
Current Rating 12A
Actuator Type Slide Switch
Number of Poles 1
Breaker Type Solid State
Circuit Protection Type MAGNETIC CIRCUIT BREAKER
Dimensions
Height 90.5mm
Length 80mm
Width 12.5mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
